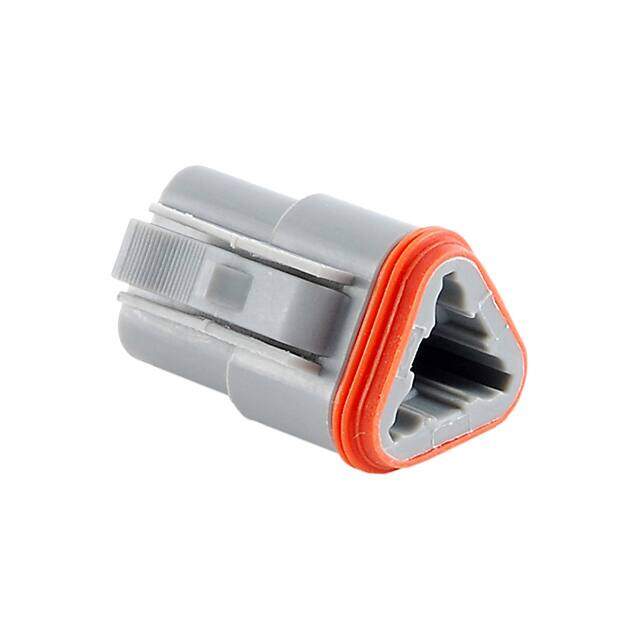

AT06-3S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 3POS 14-20AWG SIZE 16
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.78408
≥100 USD $0.751872
≥500 USD $0.735856
≥1000 USD $0.703912
≥3000 USD $0.639936
Inventory: 16069
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP68
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 18.3mm
Length 18.3mm
Height 22.67mm
Technical
Contact Termination Crimp
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Number of Ports 1
Max Current Rating 13A
Note Contacts Not Included
Empty Shell NO
Housing Color Grey
Current Rating 13A
Depth 28.55mm
Orientation Straight
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
Fastening Type Latch Lock
Gender Male
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Connector Type Plug
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Sealed
Series AT Series?
Published 2014
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Nickel
Supply Chain
Factory Lead Time 12 Weeks
