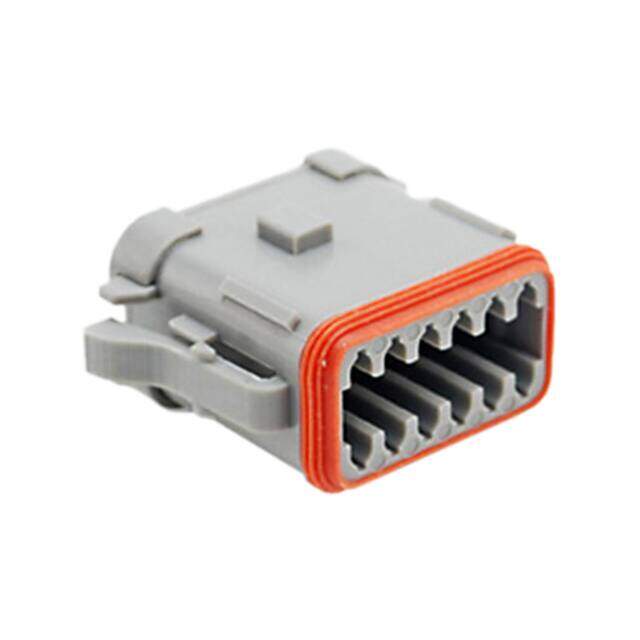

AT06-12SA-EC01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 12POS 14-20AWG SIZE 16
PDF
/
Buying Options
Total Price: USD $3.73
Unit Price: USD $3.7312
≥1 USD $3.7312
≥10 USD $3.38976
≥100 USD $3.21024
≥500 USD $3.135616
≥1000 USD $2.986368
≥3000 USD $2.613072
Inventory: 406
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Bulk
Published 2009
Series AT Series?
Feature Cap (Cover)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Number of Positions 12
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 2
Gender Male
HTS Code 8536.69.40.30
Fastening Type Latch Lock
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 12
Orientation Straight
Depth 32.8mm
Housing Color Grey
Empty Shell NO
Note Contacts Not Included
Max Current Rating 13A
Number of Ports 1
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 14 AWG
Contact Termination Crimp
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
