AT06-08SA-SS01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

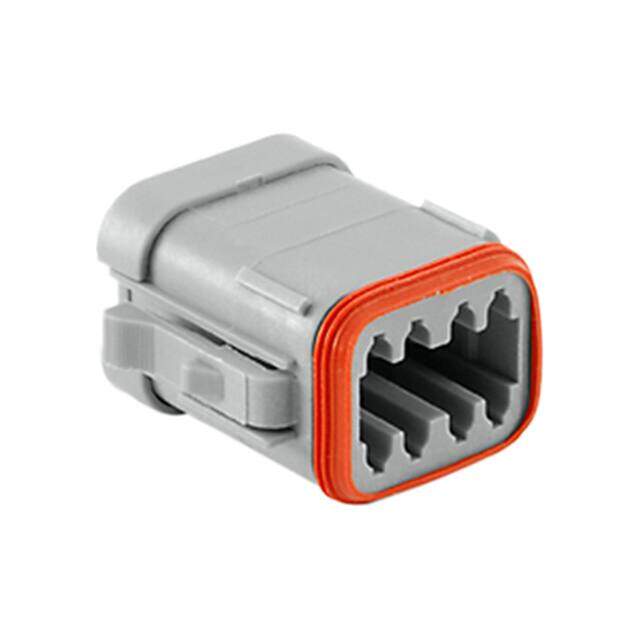

Conn Housing PL 8 POS ST Cable Mount
PDF
/
Buying Options
Total Price: USD $3.67
Unit Price: USD $3.6696
≥1 USD $3.6696
≥10 USD $3.32904
≥100 USD $3.152864
≥500 USD $3.079648
≥1000 USD $2.93304
≥3000 USD $2.493075
Inventory: 572
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 37.3mm
Technical
Contact Termination Crimp
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Max Current Rating 13A
Note Contacts Not Included
Housing Color Grey
Depth 33.2mm
Orientation Straight
Contact Type Female Socket
Fastening Type Latch Lock
Number of Rows 2
Color Gray
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 8
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Cap (Cover), Sealed
Series AT Series?
Published 2009
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
