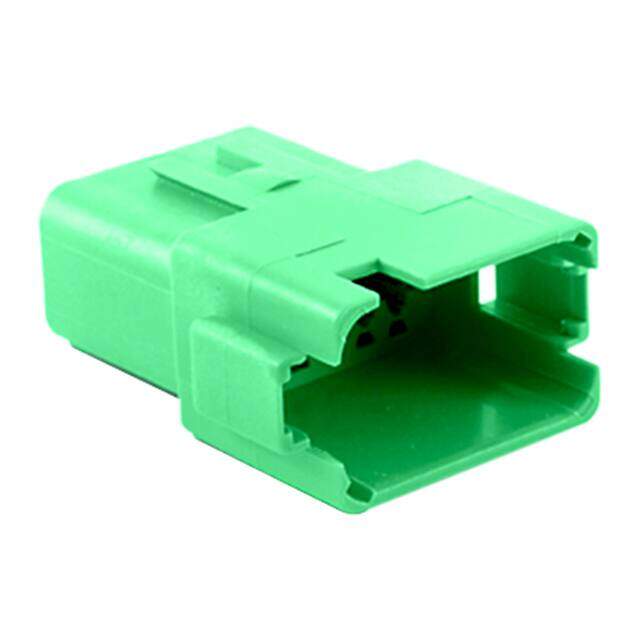

AT04-12PC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RCPT 12POS 14-20AWG SIZE 16
PDF
/
Buying Options
Total Price: USD $3.34
Unit Price: USD $3.3352
≥1 USD $3.3352
≥10 USD $3.02632
≥100 USD $2.866336
≥500 USD $2.799808
≥1000 USD $2.6664
≥3000 USD $2.26644
Inventory: 501
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 40.45mm
Technical
Contact Termination Crimp
Wire/Cable Gauge 20 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
Max Current Rating 13A
Note Contacts Not Included
Empty Shell NO
Reach Compliance Code unknown
Depth 50.5mm
Orientation Straight
Total Number of Contacts 12
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Latch Holder
HTS Code 8536.69.40.30
Gender Female
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 12
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AT Series?
Published 2009
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
