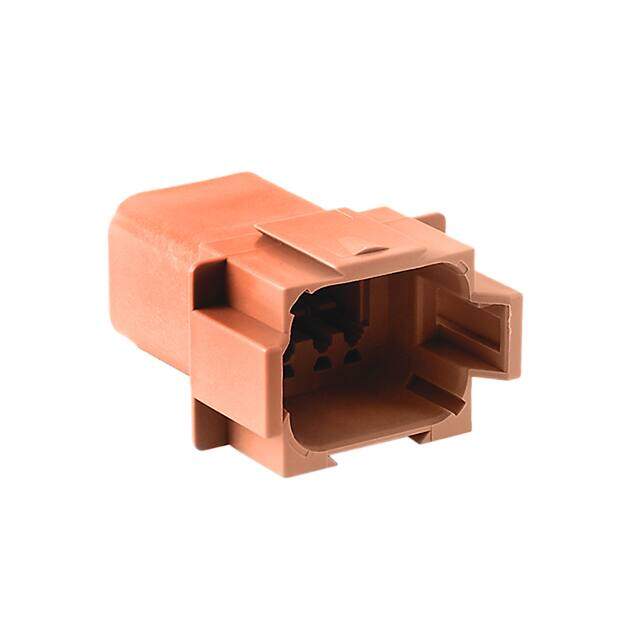

AT04-08PD-RD01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing RCP 8 POS ST Cable Mount
PDF
/
Buying Options
Total Price: USD $3.26
Unit Price: USD $3.2648
≥1 USD $3.2648
≥10 USD $2.9656
≥100 USD $2.80896
≥500 USD $2.743664
≥1000 USD $2.613072
≥3000 USD $2.286434
Inventory: 364
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 36.5mm
Technical
Contact Termination Crimp
Wire/Cable Gauge 16 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 14 AWG
Max Current Rating 13A
Note Contacts Not Included
Housing Color Brown
Depth 45.7mm
Orientation Straight
Contact Type Male Pin
Fastening Type Latch Holder
Gender Female
Number of Rows 2
Color Brown
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 8
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Sealed
Series AT Series?
Published 2013
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
