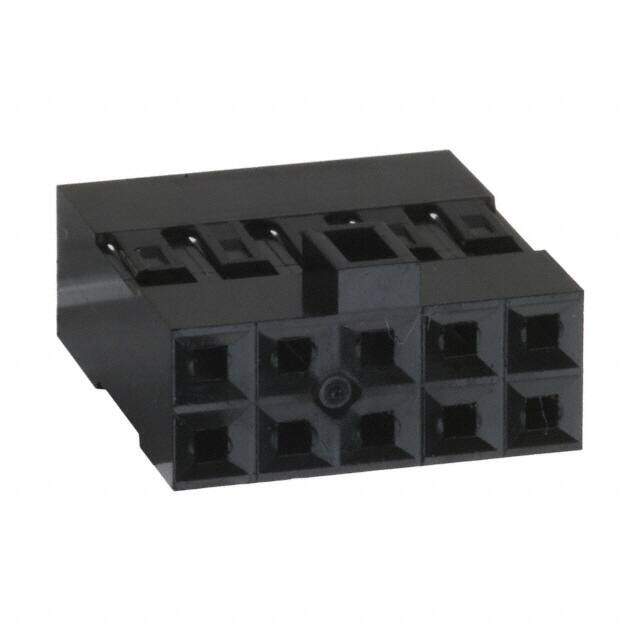

69176-010LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Rectangular Connector Housing
PDF
/
Buying Options
Total Price: USD $2.3
Unit Price: USD $2.2968
≥1 USD $2.2968
≥10 USD $1.9976
≥100 USD $1.785432
≥500 USD $1.27534
≥1000 USD $1.1308
Inventory: 764
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyphenylene
Technical
Packaging Bulk
Published 2013
Series Mini-PV?, Basics+
Feature Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Receptacle
Voltage - Rated 1kV
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Straight
Depth 13.84mm
Number of Contacts 10
Contact Gender Female
Housing Color Black
Row Spacing 0.100 (2.54mm)
Note Contacts Not Included
Max Voltage Rating (AC) 1kV
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 36 AWG
Contact Termination Crimp
Dimensions
Length 12.7mm
Width 13.85mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
