150-10-632-00-001101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Specialty Pin
Description

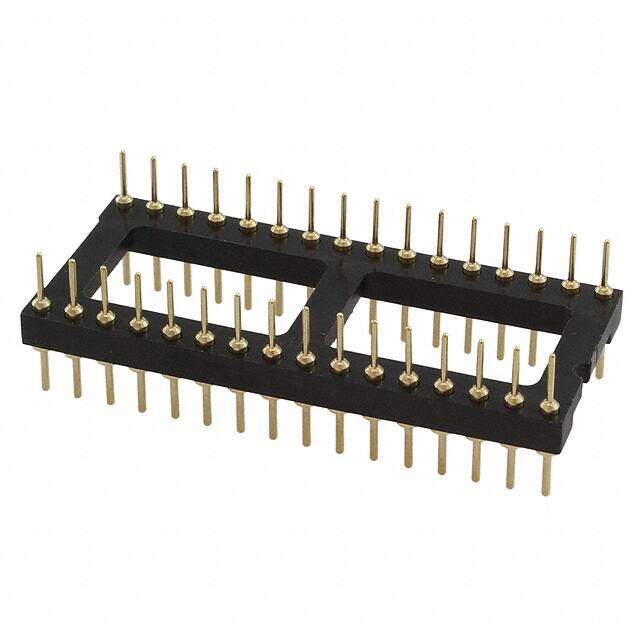

CONN HDR DIP MALE PIN 32POS GOLD
PDF
/
Buying Options
Total Price: USD $5.58
Unit Price: USD $5.5792
≥1 USD $5.5792
≥10 USD $5.043078
≥100 USD $4.415488
≥500 USD $3.718317
≥1000 USD $3.253518
Inventory: 420
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Insulation Material Polychlorinated
Housing Material POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
Technical
Packaging Tube
Published 2011
Series 150
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type DIP, DIL - Header
Number of Positions 32
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Gender Male
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Contact Type Male Pin
Pitch 0.100 2.54mm
Orientation Straight
Depth 17.7mm
Current Rating 1A
Contact Finish Gold
Number of Contacts 32
Row Spacing 0.600 (15.24mm)
Device Socket Type IC SOCKET
Dimensions
Length 40.6mm
Contact Finish Thickness 10.0μin 0.25μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
