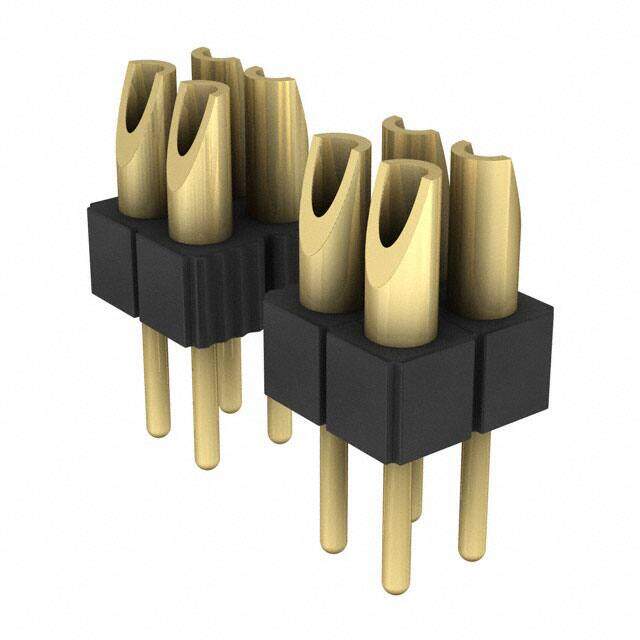

802-10-018-10-007000 image
Favorite
802-10-018-10-007000 image
Favorite

802-10-018-10-007000

Mill-Max Manufacturing Corp.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Specialty Pin
Description Headers & Wire Housings 18P,2R MALE,20-18AWG 4.5A,SOLDERCUP STRIP
PDF
/
Inventory: 3982
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness 10.0μin 0.25μm
Length 45.72mm
Height 11.86mm

Technical

Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 18 AWG
Row Spacing 0.100 (2.54mm)
Contact Gender Male
Contact Finish Gold
Current Rating 4.5A
Pitch 0.100 2.54mm
Contact Type Solder Cup
Voltage - Rated 100V
Number of Rows 2
Number of Positions 18
Resistance 2Ohm
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 802
Published 2017
Packaging Bulk

Physical

Housing Material Polyester
Mounting Type Through Hole
Mount Through Hole
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 3 Weeks
