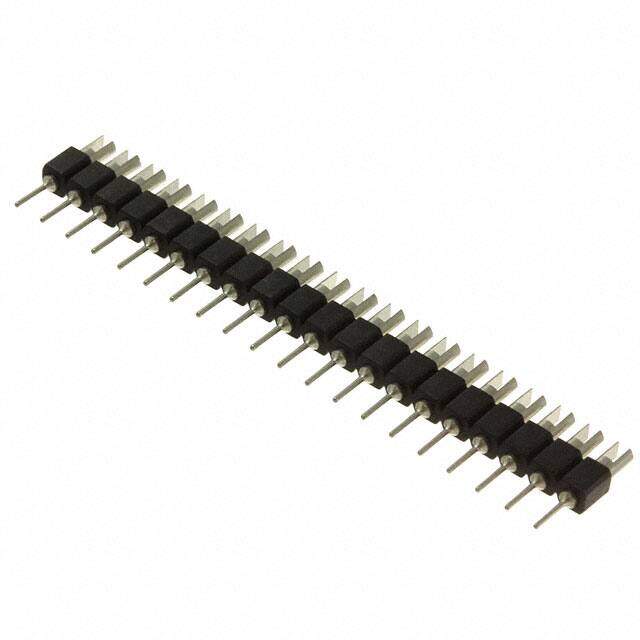

D01-9942046
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Specialty Pin
Description
IC & Component Sockets 20 SIL SLOTTED HDR
PDF
/
Buying Options
Total Price: USD $8.1
Unit Price: USD $8.096
≥1 USD $8.096
≥10 USD $7.28728
≥100 USD $6.512968
≥500 USD $4.823139
Inventory: 196
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Insulation Material Polyamide
Technical
Packaging Bulk
Published 2009
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type SIP, SIL - Header
Number of Positions 20
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Number of Rows 1
HTS Code 8536.69.40.40
Contact Type Slotted
Pitch 0.100 2.54mm
Orientation Straight
Depth 2.54mm
Current Rating 1.5A
Contact Finish Tin
Contact Resistance 23mOhm
Insulation Resistance 100MOhm
Dimensions
Length 51.1mm
Contact Finish Thickness 137.8μin 3.50μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
