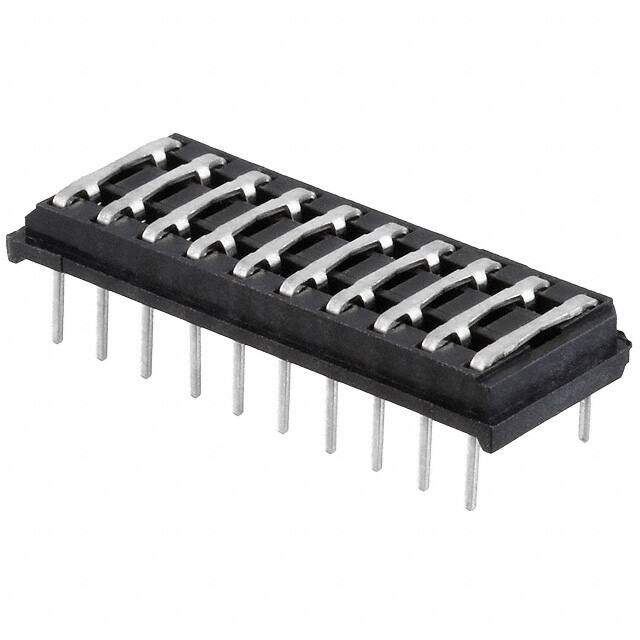

20-680-191T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Specialty Pin
Description
IC & Component Sockets PROGRAM HEADER/COVER 20 PINS
PDF
/
Buying Options
Total Price: USD $1.47
Unit Price: USD $1.470475
≥1 USD $1.470475
≥10 USD $1.38724
≥100 USD $1.30871
≥500 USD $1.23464
≥1000 USD $1.164745
Inventory: 8718
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Housing Material NYLON46
Technical
Packaging Tray
Published 2009
Series 680
JESD-609 Code e3
Feature Programmable
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 20
Color Black
Number of Rows 2
Gender Male
Additional Feature STANDARD: UL 94V-0
Contact Type Male Pin
Pitch 0.100 2.54mm
Contact Finish Tin
Lead Pitch 2.54mm
Number of Contacts 20
Row Spacing 0.300 (7.62mm)
Device Socket Type IC SOCKET
Washable Yes
Dimensions
Height 3.3mm
Length 25.4mm
Width 10mm
Contact Finish Thickness 50.0μin 1.27μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
