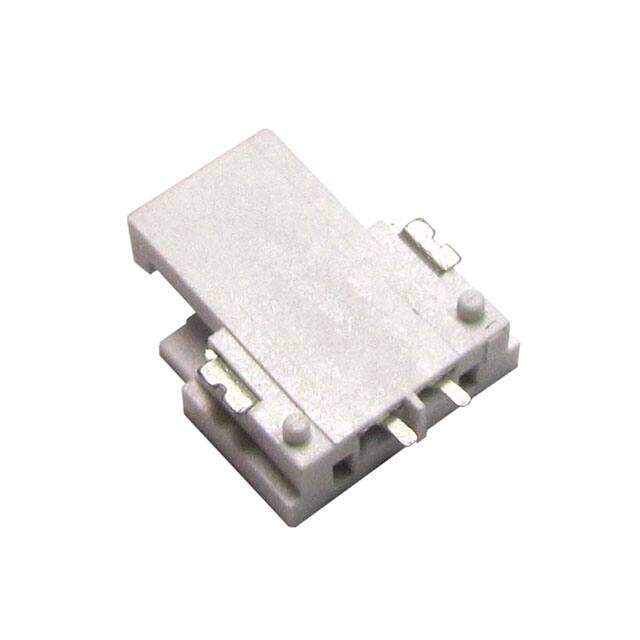

695405151122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 5POS 0.059 TIN SMD R/A
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.876095
≥1 USD $0.876095
≥10 USD $0.826502
≥100 USD $0.779719
≥500 USD $0.735585
≥1000 USD $0.693946
Inventory: 8171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 120.0μin 3.05μm
Contact Finish Thickness - Mating 120.0μin 3.05μm
Technical
Contact Resistance 20mOhm
Operating Supply Voltage 150V
Housing Color White
Contact Finish - Post Tin
Lead Pitch 1.5mm
Insulation Color White
Pitch - Mating 0.059 1.50mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.096 2.44mm
Pitch 1.4986mm
Current Rating (Amps) 1A
Contact Type Female Blade Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 150VAC
Gender Receptacle
Number of Rows 1
Color White
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 5
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series WR-LECO
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Number of Pins 5
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
