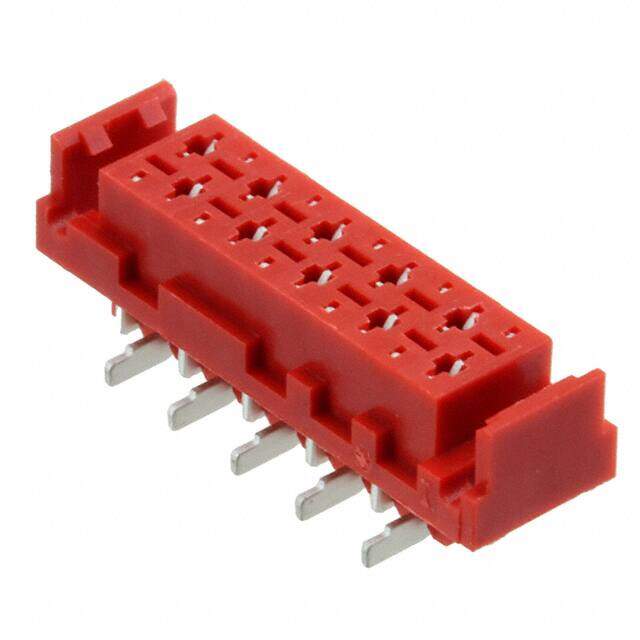

690367291076
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 10POS 0.1 TIN SMD
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.88005
≥1 USD $1.88005
≥10 USD $1.5428
≥100 USD $1.49435
≥500 USD $1.4459
≥1000 USD $1.39745
Inventory: 33257
Minimum: 1
-
+
Technical Details
Technical
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.207 5.25mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 1.5A per Contact
Contact Type Forked
Contact Finish - Mating Tin
Fastening Type Latch Lock
Voltage - Rated 100VAC
Gender Female
Number of Rows 2
Color Red
Number of Positions 10
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series WR-MM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Contact Resistance 10mOhm
Operating Supply Voltage 100V
Contact Finish - Post Tin
Number of Contacts 10
Lead Pitch 2.54mm
Row Spacing - Mating 0.059 (1.50mm)
Insulation Color Red
Pitch - Mating 0.100 2.54mm
Physical
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Rectangular
Number of Pins 10
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 18 Weeks
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
