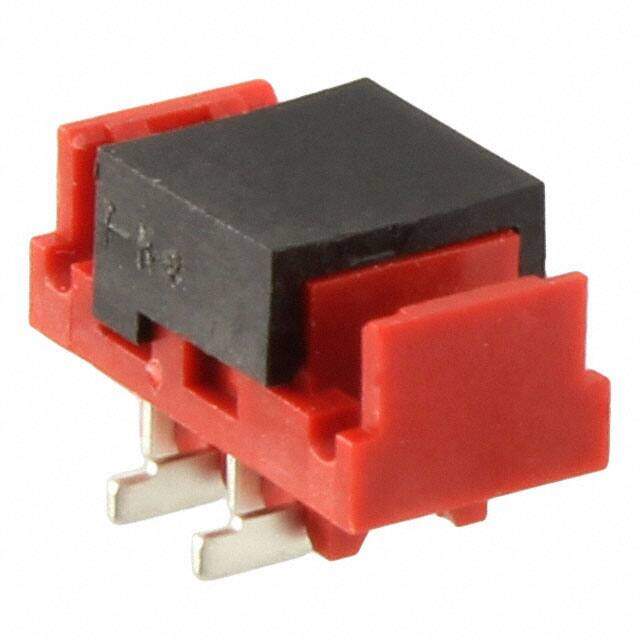

690367290476
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4POS 0.1 TIN SMD
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.503966
≥1 USD $0.503966
≥10 USD $0.475441
≥100 USD $0.448526
≥500 USD $0.423145
≥1000 USD $0.399189
Inventory: 3505
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 4
Contact Shape Rectangular
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series WR-MM
Feature Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 4
Color Red
Number of Rows 2
Gender Female
Voltage - Rated 100VAC
Fastening Type Latch Lock
Contact Finish - Mating Tin
Contact Type Forked
Current Rating (Amps) 1.5A per Contact
Pitch 2.54mm
Orientation Straight
Insulation Height 0.207 5.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Red
Row Spacing - Mating 0.059 (1.50mm)
Lead Pitch 2.54mm
Number of Contacts 4
Contact Finish - Post Tin
Operating Supply Voltage 100V
Contact Resistance 10mOhm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
