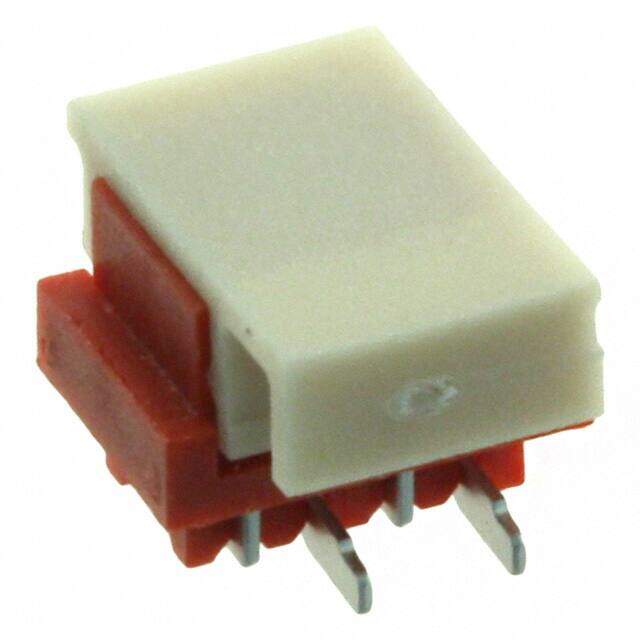

690367280476
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 4POS 0.1 TIN SMD
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.544008
≥1 USD $0.544008
≥10 USD $0.513217
≥100 USD $0.484165
≥500 USD $0.456759
≥1000 USD $0.430905
Inventory: 1140
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Length 7.08mm
Height 5.75mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Operating Supply Voltage 100V
Contact Gender Female
Contact Finish - Post Tin
Number of Contacts 4
Lead Pitch 2.54mm
Row Spacing - Mating 0.059 (1.50mm)
Insulation Color Red
Pitch - Mating 0.100 2.54mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.207 5.25mm
Orientation Right Angle
Pitch 1.27mm
Current Rating (Amps) 1.5A per Contact
Contact Type Forked
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 100VAC
Gender Female
Number of Rows 2
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 4
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series WR-MM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Housing Material Polyamide
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Rectangular
Number of Pins 4
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 18 Weeks
