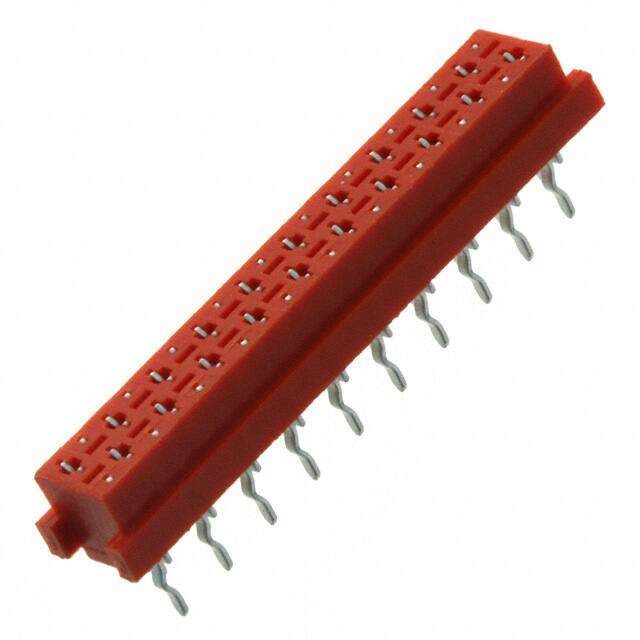

690367182072
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 20POS 0.1 TIN PCB
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.982844
≥1 USD $0.982844
≥10 USD $0.927213
≥100 USD $0.874727
≥500 USD $0.825216
≥1000 USD $0.778503
Inventory: 2410
Minimum: 1
-
+
Technical Details
Technical
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Forked
Current Rating (Amps) 1.5A per Contact
Pitch 1.27mm
Orientation Straight
Insulation Height 0.157 4.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Red
Row Spacing - Mating 0.059 (1.50mm)
Contact Length - Post 0.122 3.10mm
Lead Pitch 2.54mm
Number of Contacts 20
Contact Finish - Post Tin
Contact Gender Female
Operating Supply Voltage 100V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Voltage - Rated 100VAC
Gender Female
Number of Rows 2
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Receptacle
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-MM
Packaging Tube
Operating Temperature -40°C~105°C
Dimensions
Height 4mm
Length 27.4mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Physical
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Rectangular
Number of Pins 20
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
