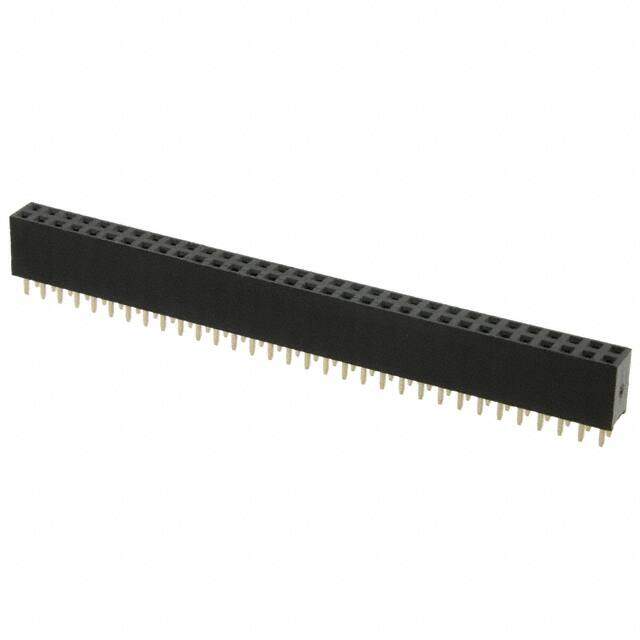

61306421821
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 64POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $2.58
Unit Price: USD $2.579538
≥1 USD $2.579538
≥10 USD $2.43353
≥100 USD $2.295787
≥500 USD $2.165832
≥1000 USD $2.043239
Inventory: 6583
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Number of Pins 64
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-PHD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 64
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Female
Voltage - Rated 250VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 3A
Pitch 2.54mm
Orientation Vertical
Insulation Height 0.331 8.40mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Lead Pitch 2.54mm
Number of Contacts 64
Contact Finish - Post Gold
Contact Gender Female
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 8.5mm
Length 81.78mm
Width 81.78mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
