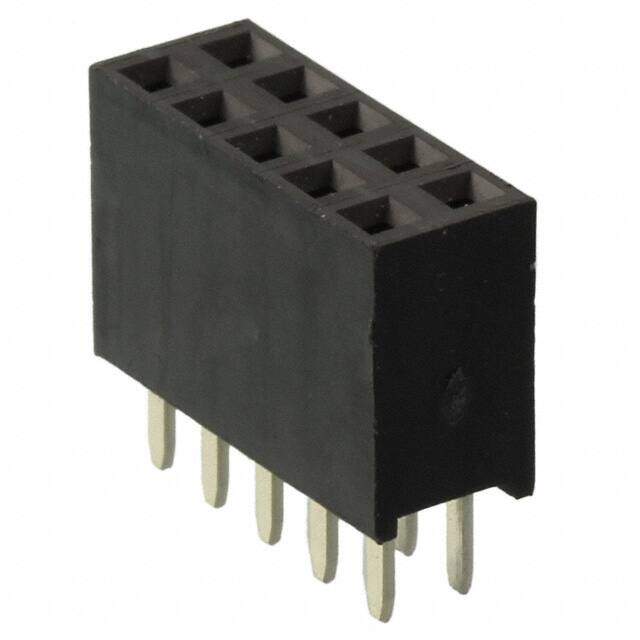

61301021821

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HDR 10POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.657504
≥1 USD $0.657504
≥10 USD $0.620291
≥100 USD $0.585176
≥500 USD $0.552053
≥1000 USD $0.520805
Inventory: 1232
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0

Dimensions

Width 13.2mm
Length 5.08mm
Height 8.6mm

Technical

Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Operating Supply Voltage 250V
Contact Gender Female
Contact Finish - Post Gold
Number of Contacts 10
Lead Pitch 2.54mm
Contact Length - Post 0.122 3.10mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.331 8.40mm
Orientation Vertical
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Forked
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250VAC
Gender Female
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-PHD
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Number of Pins 10
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 14 Weeks
