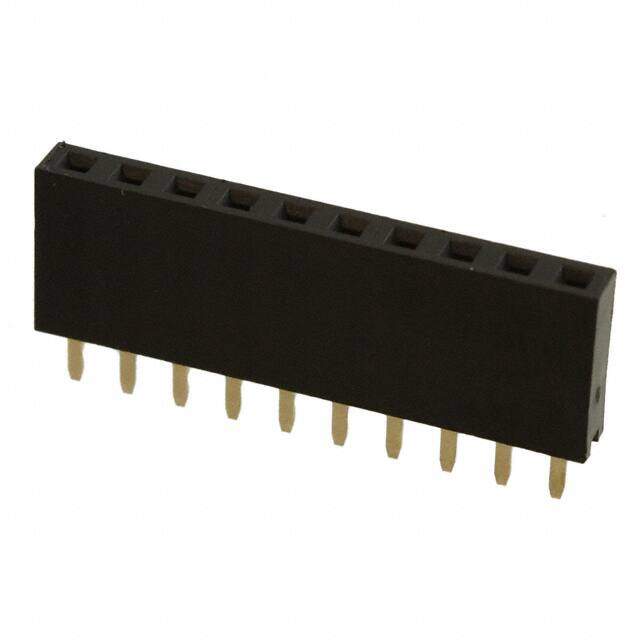

61301011821
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 10POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.552346
≥1 USD $0.552346
≥10 USD $0.52108
≥100 USD $0.491586
≥500 USD $0.46376
≥1000 USD $0.437509
Inventory: 3482
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 25.9mm
Length 25.9mm
Height 8.5mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Operating Supply Voltage 250V
Contact Gender Female
Contact Finish - Post Gold
Number of Contacts 10
Lead Pitch 2.54mm
Contact Length - Post 0.122 3.10mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Orientation Vertical
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Forked
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250VAC
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-PHD
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Number of Pins 10
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
