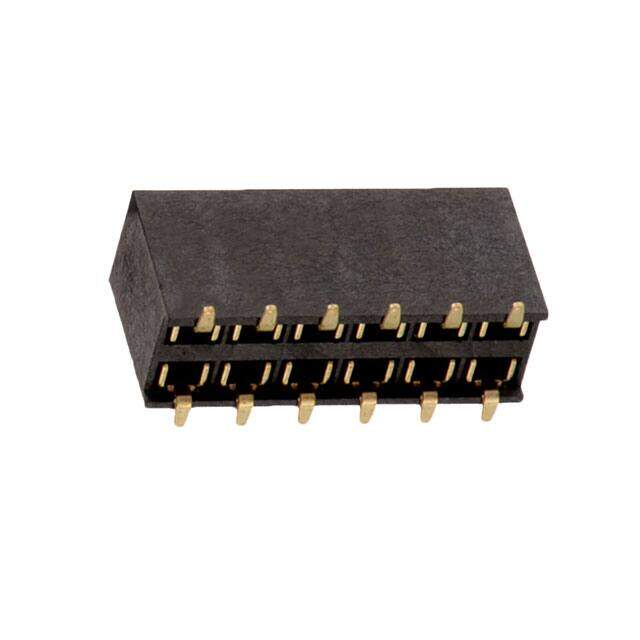

61031421821
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.460458
≥1 USD $2.460458
≥10 USD $2.32119
≥100 USD $2.189796
≥500 USD $2.065848
≥1000 USD $1.948916
Inventory: 3695
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Contact Resistance 20mOhm
Operating Supply Voltage 250V
Contact Finish - Post Gold
Lead Pitch 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.293 7.44mm
Orientation Vertical
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250VAC
Gender Female
Number of Rows 2
Applications General Purpose
Number of Positions 14
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series WR-PHD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA46), Nylon 4/6
Contact Shape Square
Number of Pins 14
Mounting Type Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
