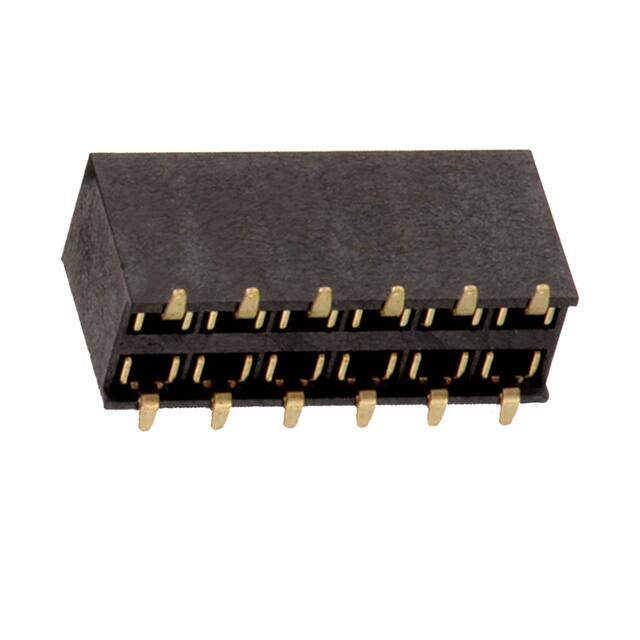

61030421821
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.941638
≥1 USD $0.941638
≥10 USD $0.888342
≥100 USD $0.838055
≥500 USD $0.790618
≥1000 USD $0.745869
Inventory: 7358
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Number of Pins 4
Contact Shape Square
Insulation Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series WR-PHD
Feature Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Applications General Purpose
Number of Rows 2
Gender Female
Voltage - Rated 250VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 3A
Orientation Vertical
Insulation Height 0.293 7.44mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Lead Pitch 2.54mm
Contact Finish - Post Gold
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
