610124249221
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

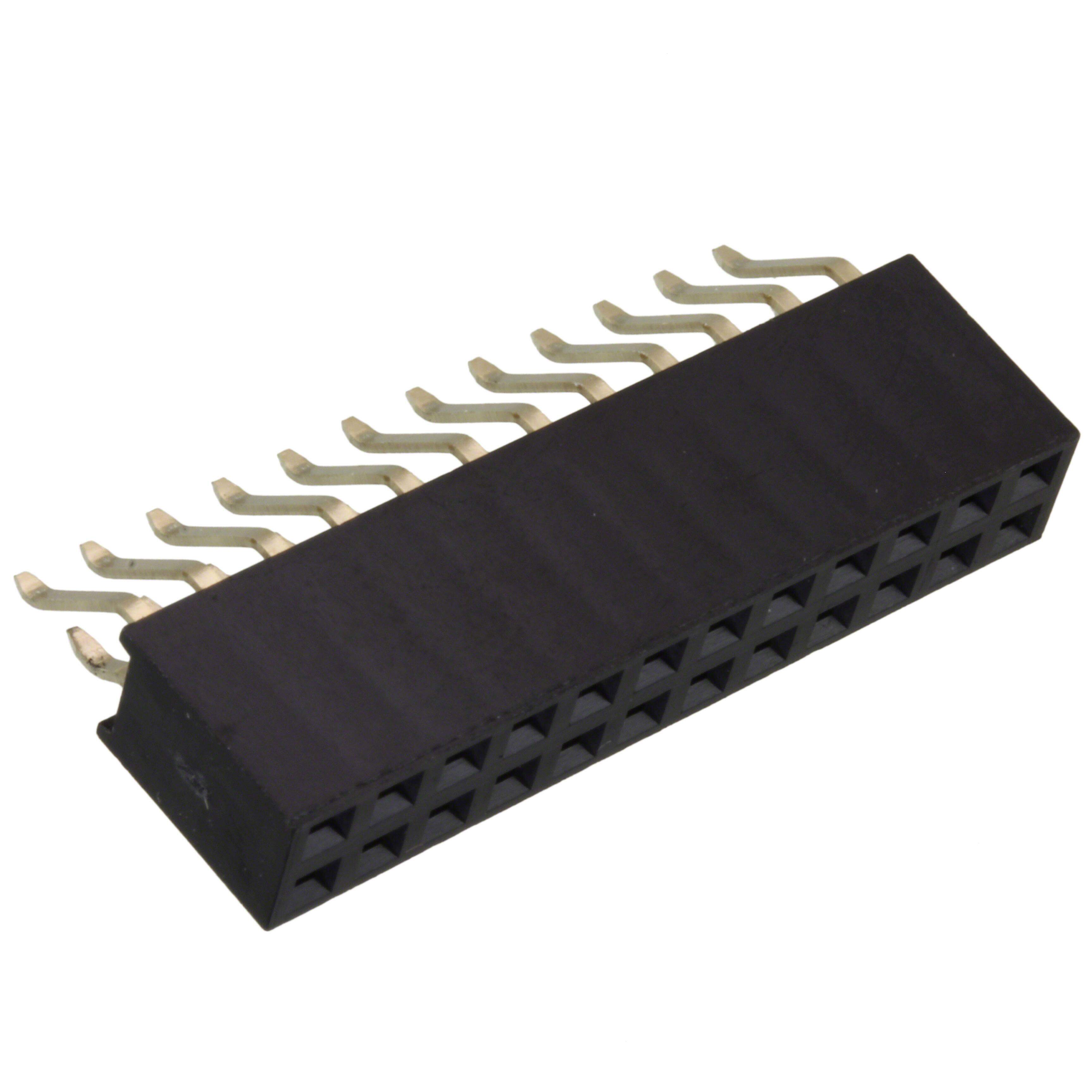

CONN HDR 24POS 0.1 GOLD SMD R/A
PDF
/
Buying Options
Total Price: USD $3.42
Unit Price: USD $3.422865
≥1 USD $3.422865
≥10 USD $3.229116
≥100 USD $3.046338
≥500 USD $2.873897
≥1000 USD $2.711224
Inventory: 2686
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Number of Pins 24
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Series WR-PHD
Feature Board Guide
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 24
Color Black
Number of Rows 2
Gender Female
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.197 5.00mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Lead Pitch 2.54mm
Number of Contacts 24
Contact Finish - Post Gold
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
