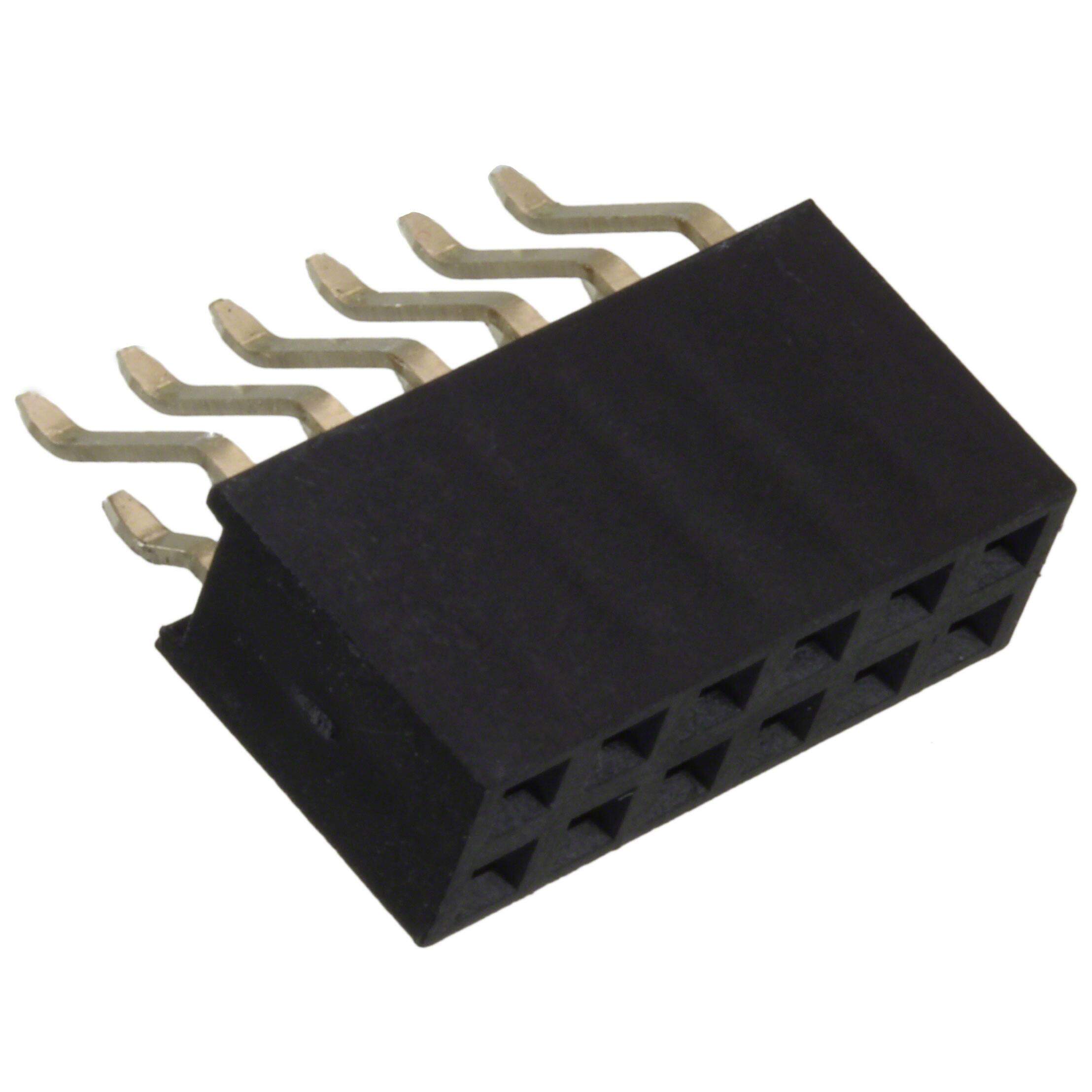

610112249221
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 12POS 0.1 GOLD SMD R/A
PDF
/
Buying Options
Total Price: USD $1.94
Unit Price: USD $1.937089
≥1 USD $1.937089
≥10 USD $1.82744
≥100 USD $1.724009
≥500 USD $1.626419
≥1000 USD $1.534357
Inventory: 2226
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Technical
Contact Resistance 20mOhm
Operating Supply Voltage 250V
Contact Finish - Post Gold
Number of Contacts 12
Lead Pitch 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.197 5.00mm
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Forked
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250V
Gender Female
Number of Rows 2
Color Black
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature Board Guide
Series WR-PHD
Packaging Cut Tape (CT)
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Number of Pins 12
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy
