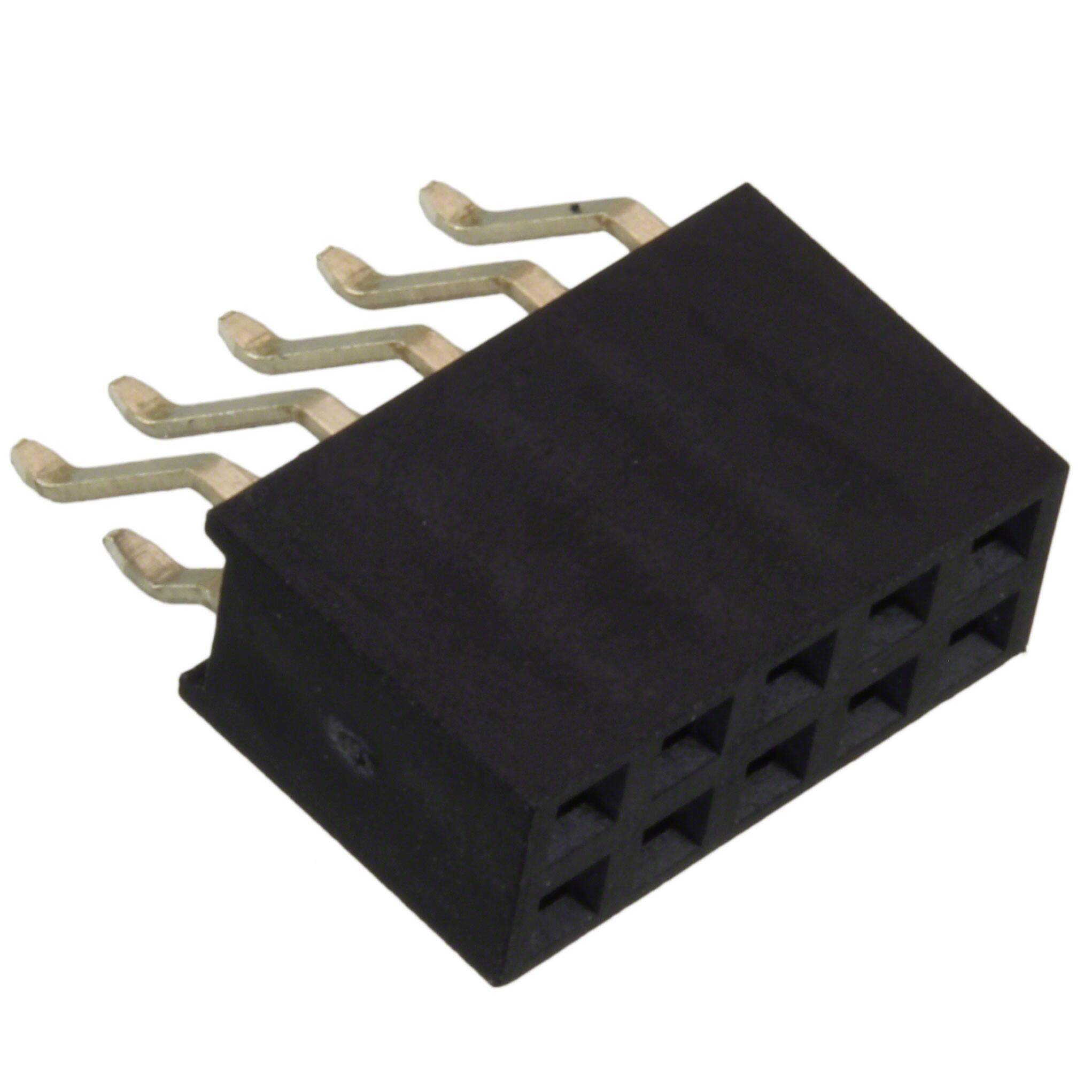

610110249221
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN HDR 10POS 0.1 GOLD SMD R/A
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716019
≥1 USD $1.716019
≥10 USD $1.618881
≥100 USD $1.527247
≥500 USD $1.440806
≥1000 USD $1.359252
Inventory: 6872
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 63 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Number of Pins 10
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Series WR-PHD
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Color Black
Number of Rows 2
Gender Female
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.197 5.00mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Lead Pitch 2.54mm
Number of Contacts 10
Contact Finish - Post Gold
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
