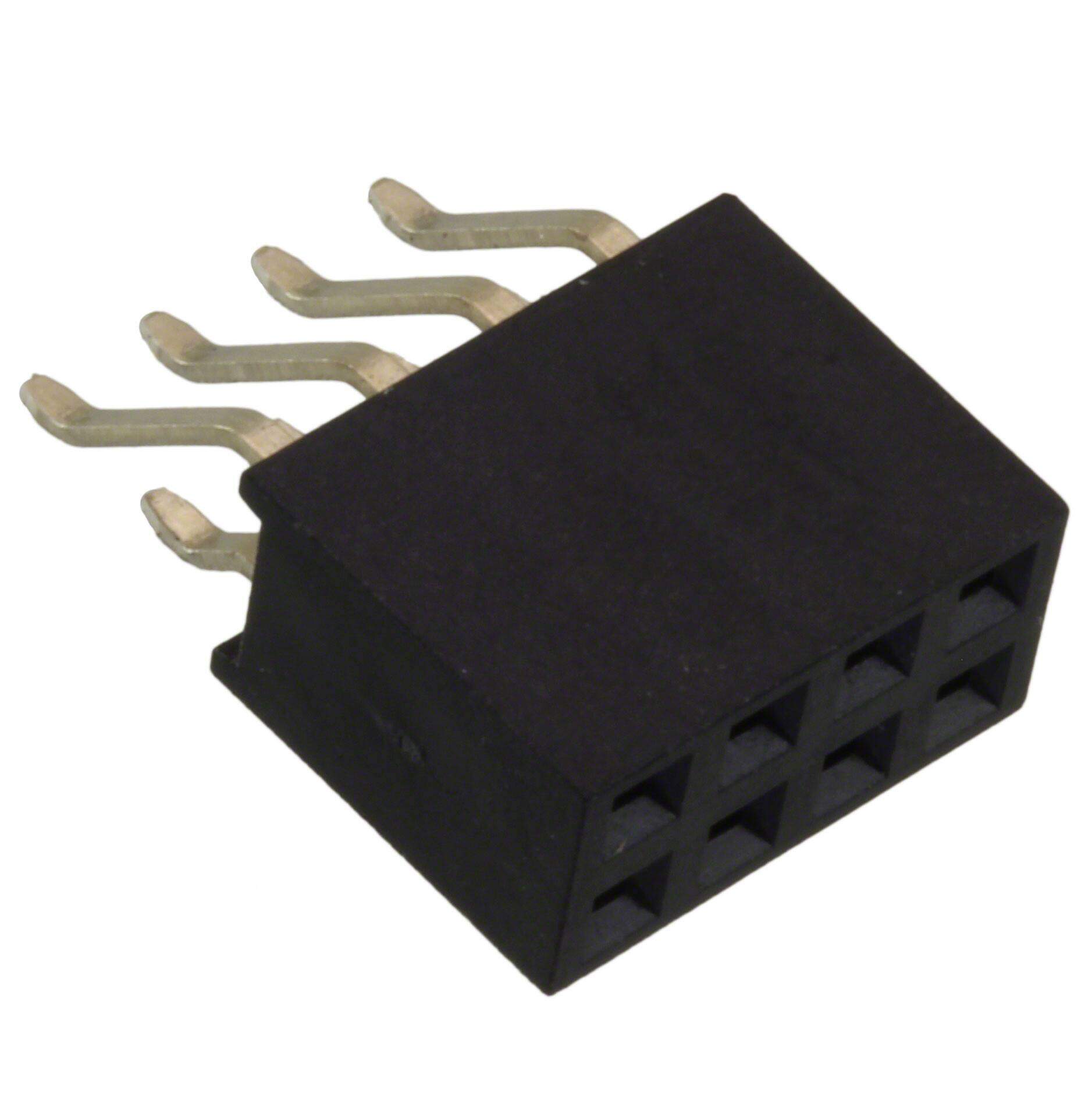

610108249221

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HDR 8POS 0.1 GOLD SMD R/A
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.460403
≥1 USD $1.460403
≥10 USD $1.377738
≥100 USD $1.299752
≥500 USD $1.226185
≥1000 USD $1.156781
Inventory: 1351
Minimum: 1
-
+

Technical Details

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Number of Pins 8
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T

Technical

Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Series WR-PHD
Feature Board Guide
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Color Black
Number of Rows 2
Gender Female
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Forked
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.197 5.00mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Lead Pitch 2.54mm
Number of Contacts 8
Contact Finish - Post Gold
Operating Supply Voltage 250V
Contact Resistance 20mOhm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
