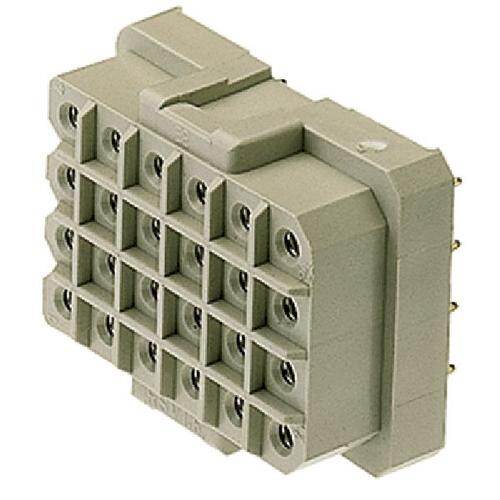

1445200000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Board to Board F 24 POS 5mm Solder ST Thru-Hole Box
PDF
/
Buying Options
Total Price: USD $104.69
Unit Price: USD $104.68802
≥1 USD $104.68802
≥200 USD $41.771226
≥500 USD $40.375614
≥1000 USD $39.686341
Inventory: 9611
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Polyamide
Technical
Operating Temperature -20°C~120°C
Packaging Bulk
Published 2018
Series Omnimate RSV
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Color Grey
Number of Rows 4
Voltage - Rated 300V
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 23.5mm
Insulation Height 0.563 14.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 10A
Pitch - Mating 0.197 5.00mm
Insulation Color Gray
Approval Agency CSA, UR
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.126 3.20mm
Contact Finish - Post Tin
Max Current Rating 10A
Number of Poles 24
Hole Diameter 1.3 mm
Dimensions
Length 32.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
