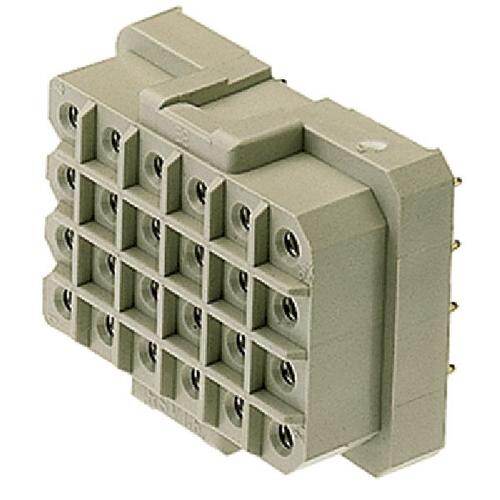

1441200000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Inventory: 4848
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -20°C~120°C
Packaging Bulk
Published 2008
Series Omnimate RSV
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Color Grey
Number of Rows 2
Voltage - Rated 300V
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Terminal Pitch 5mm
Insulation Height 0.563 14.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 10A
Pitch - Mating 0.197 5.00mm
Insulation Color Gray
Approval Agency CSA, UR
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.126 3.20mm
Contact Finish - Post Tin
UL Flammability Code 94V-0
Number of Poles 6
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
