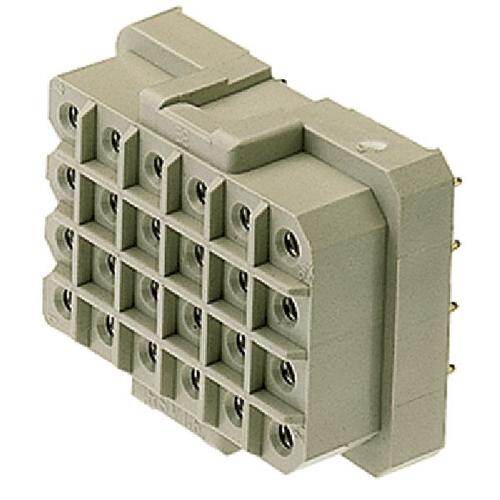

1419200000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Female Socket
PDF
/
Buying Options
Total Price: USD $158.25
Unit Price: USD $158.249089
≥1 USD $158.249089
≥200 USD $63.142613
≥500 USD $61.032782
≥1000 USD $59.99034
Inventory: 6616
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Contact Finish - Post Tin
Contact Length - Post 0.177 4.50mm
Row Spacing - Mating 0.197 (5.00mm)
Insulation Color Gray
Pitch - Mating 0.197 5.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.563 14.30mm
Terminal Pitch 5mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Holder
Number of Rows 4
Color Grey
Number of Positions 36
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Omnimate RSV
Packaging Bulk
Operating Temperature -20°C~120°C
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
