969973-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

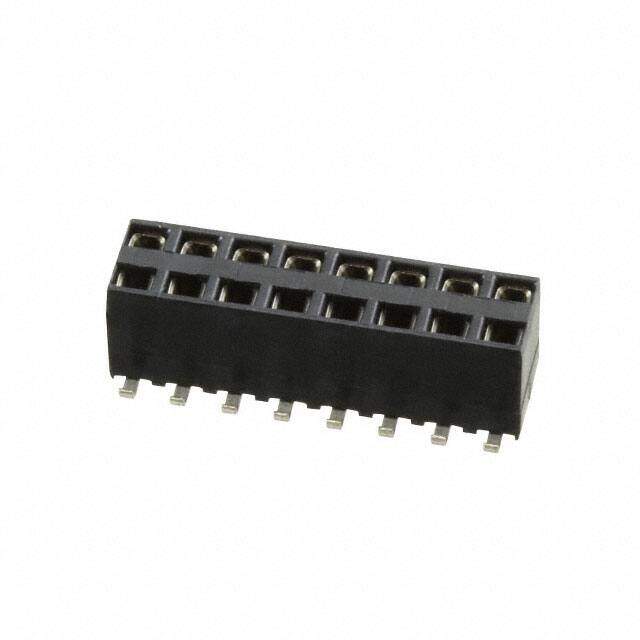

Headers & Wire Housings RECPT ASSY 2X08P HV-100
PDF
/
Buying Options
Total Price: USD $5.74
Unit Price: USD $5.7376
≥1 USD $5.7376
≥10 USD $5.03008
≥100 USD $4.50296
Inventory: 594
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness - Post 98.4μin 2.50μm
Contact Finish Thickness - Mating 31.5μin 0.80μm
Plating Thickness 2.5μm
Height 6.2mm
Technical
Stackable Yes
Contact Current Rating 3A
Sealable No
Number of Poles 16
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
Mating Contact Pitch 0.1 inch
Insulation Resistance 5000000000Ohm
Contact Resistance 12mOhm
Rated Current (Signal) 3A
Working Voltage 250V
UL Flammability Code 94V-0
Contact Gender Female
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 2
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.244 6.20mm
Total Number of Contacts 16
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Receptacle
Number of Rows 2
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Connector Type Receptacle, Bottom or Top Entry
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series AMPMODU HV-100
Published 2003
Packaging Tape & Reel (TR)
Physical
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount PCB, Surface Mount
Contact Material Copper Alloy
