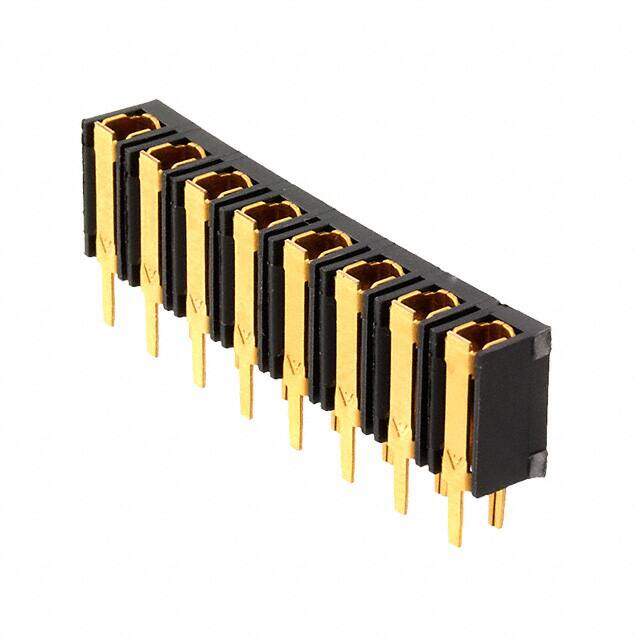

87986-8
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 08 MODI BDMNT RCPT S
PDF
/
Inventory: 6809
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Technical
Durability 200 Cycles
Insulation Resistance 5000000000Ohm
Rated Current (Signal) 5A
Body Depth 0.3 inch
Housing Color Black
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.112 2.84mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.156 3.96mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.300 7.62mm
Terminal Pitch 3.9624mm
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROUND PCB HOLE SHAPE
Number of Rows 1
Number of Positions 8
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series AMPMODU Mod I
Published 2008
Packaging Tube
Operating Temperature -65°C~105°C
Physical
Housing Material Plastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
