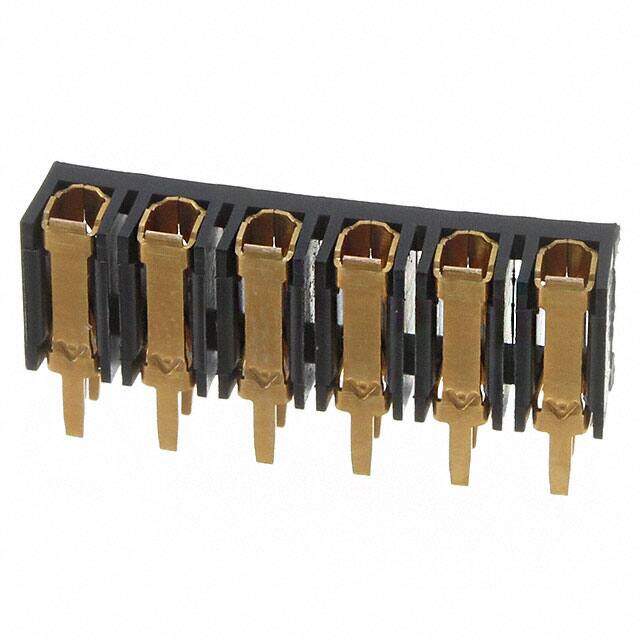

87986-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 06 MODI BDMNT RCPT SR 0.156CL
PDF
/
Inventory: 3397
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Nylon
PCB Mount Retention Without
Technical
Operating Temperature -65°C~105°C
Packaging Tube
Published 2008
Series AMPMODU Mod I
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 6
Number of Rows 1
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Vertical
Insulation Height 0.300 7.62mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.156 3.96mm
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency UL
Contact Length - Post 0.112 2.84mm
Number Of PCB Rows 1
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Black
Lead Length 2.85mm
Body Depth 0.3 inch
Rated Current (Signal) 5A
Contact Resistance 12MOhm
Insulation Resistance 5GOhm
ELV Compliant
Durability 200 Cycles
Insertion Force-Max 4.448 N
Withdrawl Force-Min .278 N
Contact Current Rating 5A
Stackable No
Dimensions
Height 7.62mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post Flash
Length - Tail 7.62mm
PCB Thickness 1.778mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
