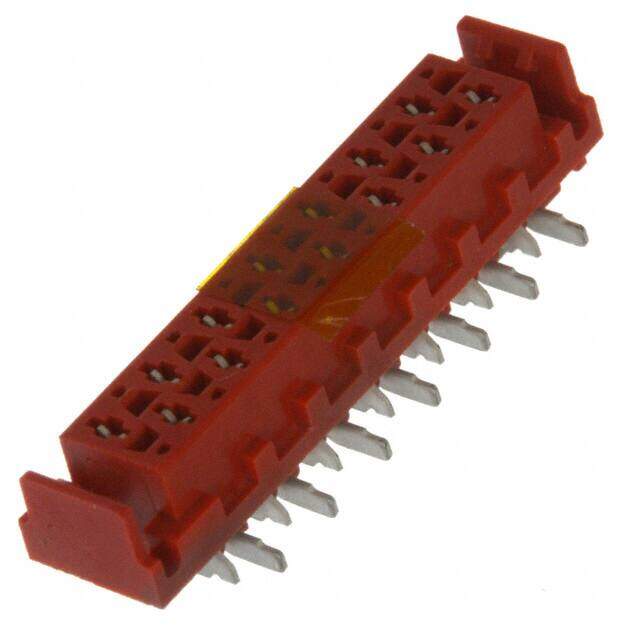

8-338069-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN FMALE-ON-BRD 14POS VERT SMD
PDF
/
Buying Options
Total Price: USD $3.02
Unit Price: USD $3.0184
≥1 USD $3.0184
≥10 USD $2.6884
≥100 USD $2.386912
Inventory: 4999
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Material Polyester
Housing Material Polyamide
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2004
Series Micro-MaTch
Feature Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 14
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Red
Applications Automotive, General Purpose
Number of Rows 2
Gender Receptacle
Voltage - Rated 100VDC
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Forked
Pitch 1.27mm
Orientation Vertical
Depth 5mm
Insulation Height 0.209 5.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Red
Voltage - Rated AC 230V
Row Spacing - Mating 0.100 (2.54mm)
Lead Pitch 1.27mm
Number of Contacts 14
Contact Finish - Post Tin
Contact Gender Female
Housing Color Red, Black
Lead Length 5.3mm
Operating Supply Voltage 100V
Contact Resistance 50mOhm
Insulation Resistance 1GOhm
ELV Compliant
Max Voltage Rating (DC) 100V
Contact Current Rating 1.4A
Mating Connector Lock Without
Dimensions
Height 6.9mm
Length 22.4mm
PCB Thickness 1.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
