8-2178711-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

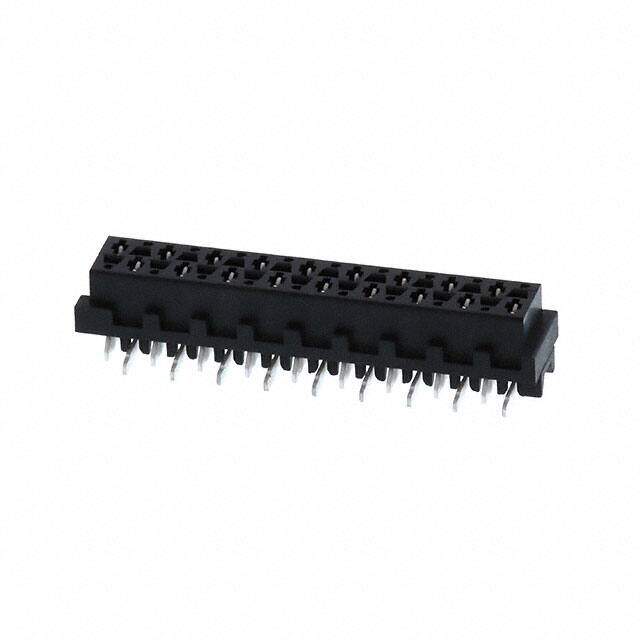

AMP FROM TE CONNECTIVITY 8-2178711-8 Wire-To-Board Connector, Micro-MaTch Value-Line Series, 18 Contacts, Receptacle, 1.27 mm
PDF
/
Buying Options
Total Price: USD $15.12
Unit Price: USD $15.1221
≥1 USD $15.1221
≥10 USD $12.40795
≥100 USD $12.02035
≥500 USD $11.6318
≥1000 USD $11.2442
Inventory: 7692
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 35 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Brass
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
PCB Mounting Orientation Vertical
PCB Mount Retention Without
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Published 2014
Series Micro-MaTch
Feature Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 18
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Applications General Purpose, Telecommunications
Number of Rows 2
Gender Receptacle
Voltage - Rated 100VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Forked
Pitch 1.27mm
Orientation Vertical
Insulation Height 0.209 5.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Number of Contacts 18
Contact Finish - Post Tin
Housing Color Black
Operating Supply Voltage 100V
Insulation Resistance 1GOhm
ELV Compliant
Contact Current Rating 950mA
Mating Connector Lock Without
Dimensions
Height 5.334mm
Length 24.892mm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
