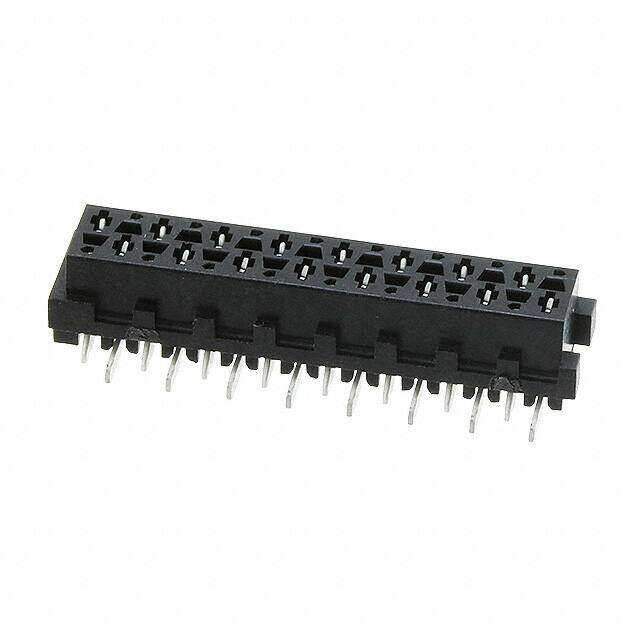

8-2178711-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
AMP - TE CONNECTIVITY - 8-2178711-6 - Wire-To-Board-Steckverbinder, 1.27 mm, 16 Kontakt(e), Buchse, Baureihe Micro-MaTch Value-Line
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.53995
≥1 USD $1.53995
≥10 USD $1.2635
≥100 USD $1.22455
≥500 USD $1.18465
≥1000 USD $1.14475
Inventory: 1230
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Length 22.3774mm
Height 5.334mm
Technical
Mating Connector Lock Without
Contact Current Rating 950mA
ELV Compliant
Insulation Resistance 1GOhm
Operating Supply Voltage 100V
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 16
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1.3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.209 5.30mm
Orientation Vertical
Pitch 1.27mm
Contact Type Forked
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 100VDC
Gender Receptacle
Number of Rows 2
Applications General Purpose, Telecommunications
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Number of Positions 16
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series Micro-MaTch
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -30°C~85°C
Physical
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 35 Weeks
