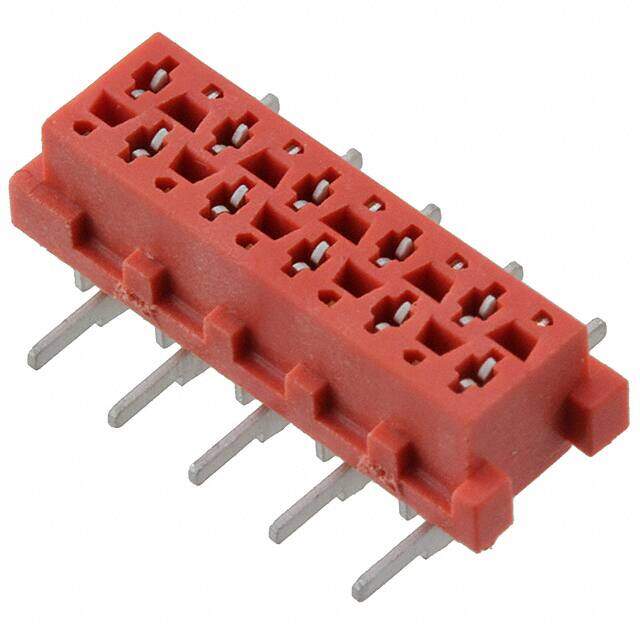

8-188431-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Board to Board F 10 POS 2.54mm Solder ST SMD Reel
PDF
/
Inventory: 8744
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mount Surface Mount, Through Hole
Mounting Type Surface Mount, Through Board
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2008
Series Micro-MaTch
Feature Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom Entry
Number of Positions 10
Applications Automotive, General Purpose
Number of Rows 2
Gender Female
Voltage - Rated 100VDC
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Total Number of Contacts 10
Orientation Vertical
Insulation Height 0.154 3.90mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code unknown
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Housing Color Red
Operating Supply Voltage 100V
Insulation Resistance 1GOhm
ELV Compliant
Mating Connector Lock Without
Dimensions
Height 6.1mm
Length 14.7mm
Contact Finish Thickness - Mating 118.1μin 3.00μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
