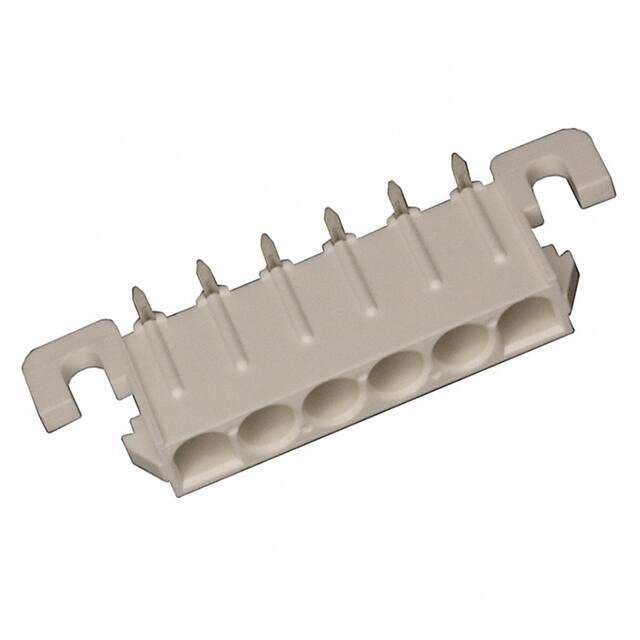

643234-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Pin & Socket Connectors 06P UMNL HDR ASSY R/A 94VO
PDF
/
Inventory: 9567
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Housing Color White
Empty Shell NO
ELV Non-Compliant
UL Flammability Code 94V-0
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish - Post Tin-Lead
Contact Length - Post 0.160 4.06mm
Insulation Color Natural
Pitch - Mating 0.250 6.35mm
Current Rating 19A
Reach Compliance Code unknown
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.360 9.14mm
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Number of Rows 1
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Mounting Flange
JESD-609 Code e0
Series Universal MATE-N-LOK
Published 2005
Packaging Bulk
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
