6-534998-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

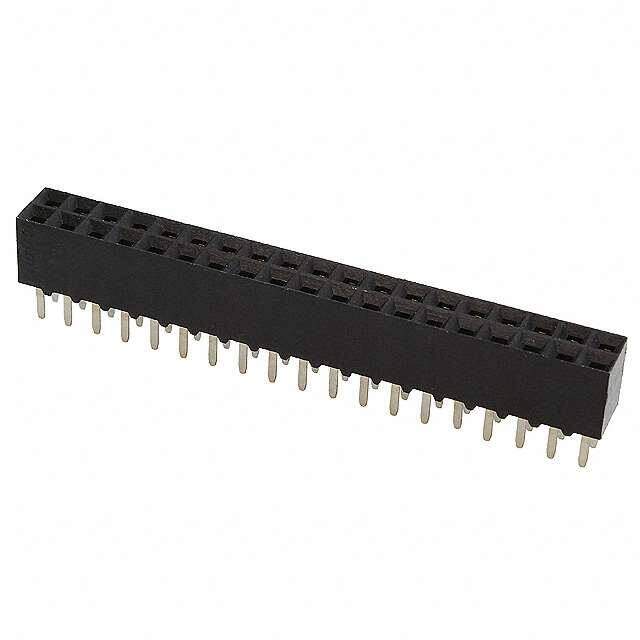

Headers & Wire Housings 38 MODIV VRT DR CE 100/125
PDF
/
Inventory: 4861
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.57mm
Length - Tail 3.18mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 7.61μm
Length 48.26mm
Height 5.03mm
Technical
High Temperature Compatible No
Stackable Yes
Mating Post Length 3.77mm
Contact Current Rating 2A
Sealable No
Plating Gold
ELV Compliant
Insulation Resistance 5GOhm
Contact Resistance 12MOhm
Operating Supply Voltage 333V
Lead Length 3.175mm
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 38
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.265 6.73mm
Depth 5.03mm
Orientation Vertical
Pitch 2.54mm
Current Rating (Amps) 2A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 125°C
Number of Positions 38
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AMPMODU Mod IV
Published 2008
Packaging Tube
Operating Temperature -65°C~125°C
Physical
PCB Mount Retention Without
PCB Mounting Orientation Vertical
Housing Material Thermoplastic
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Phosphor Bronze
