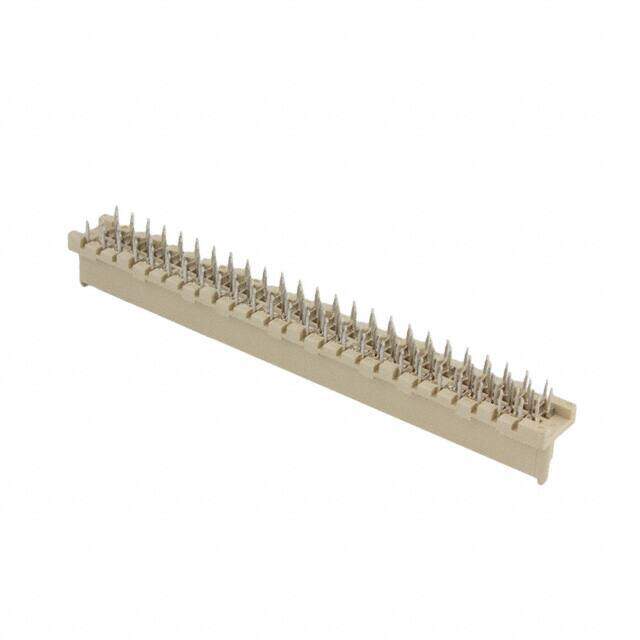

5536279-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 100POS VERT SOLDERTAIL
PDF
/
Buying Options
Total Price: USD $67.12
Unit Price: USD $67.12035
≥1 USD $67.12035
≥10 USD $55.07245
≥100 USD $53.352
≥500 USD $51.6306
≥1000 USD $49.91015
Inventory: 17
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Stack Height 18.7452mm
Stack Height (Mating) 10.92mm 17.78mm 18.75mm
Length - Tail 2.41mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Height 8.11mm
Technical
Stackable No
Preloaded Yes
Contact Current Rating 10.5A
Durability 50 Cycles
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Mating Contact Pitch 0.05 inch
Insulation Resistance 5000000000Ohm
PCB Contact Pattern STAGGERED
Contact Finish - Post Tin
Number Of PCB Rows 5
Contact Length - Post 0.095 2.41mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.320 8.13mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Voltage - Rated 30VAC
Number of Rows 2
Number of Positions 100
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Board Guide, Ground Bus (Plane)
Series Micro-Strip
Published 1999
Packaging Tray
Operating Temperature -65°C~125°C
Physical
PCB Mounting Orientation Vertical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
