5535676-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

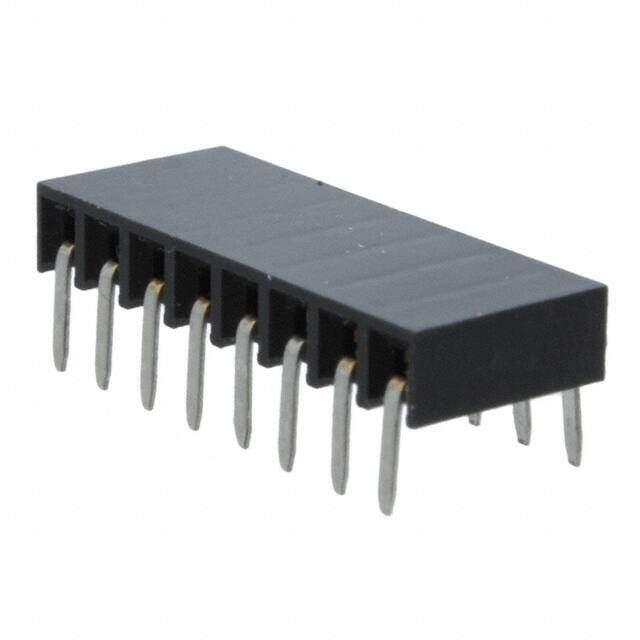

CONN RCPT 8POS 0.1 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4024
≥1 USD $2.4024
≥10 USD $2.128025
≥100 USD $1.932621
≥500 USD $1.563478
≥1000 USD $1.378898
Inventory: 1586
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Plastic
Mounting Option 1 LOCKING
PCB Mount Retention Without
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series AMPMODU Mod II
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 8
Number of Rows 1
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Horizontal, Right Angle
Terminal Pitch 2.54mm
Insulation Height 0.137 3.47mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.115 2.92mm
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Housing Color Black
Body Depth 0.32 inch
Operating Supply Voltage 333V
Rated Current (Signal) 2A
Contact Resistance 12MOhm
Insulation Resistance 5GOhm
Row Spacing 7.87 mm
Durability 200 Cycles
Sealable No
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
