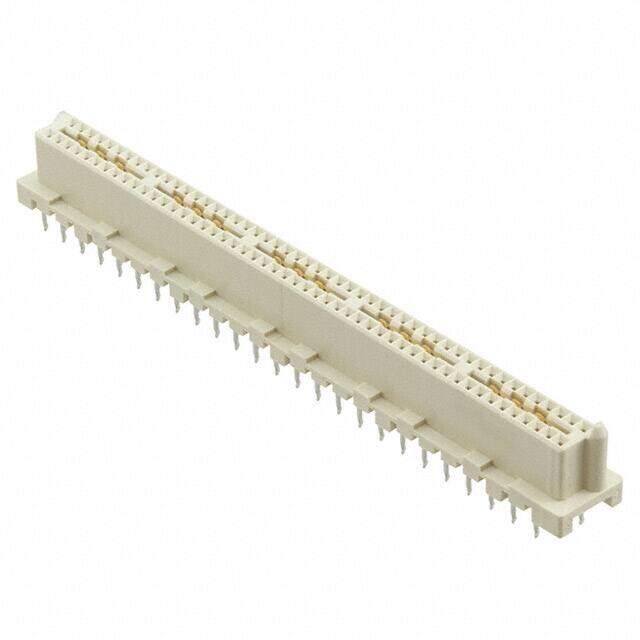

536279-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
High Speed / Modular Connectors 100P RECEPTACLE 40
PDF
/
Inventory: 3799
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic
PCB Mounting Orientation Vertical
Technical
Operating Temperature -65°C~125°C
Packaging Tube
Published 2005
Series Micro-Strip
JESD-609 Code e0
Feature Board Guide, Ground Bus (Plane)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Rows 2
Voltage - Rated 30VAC
Additional Feature STAGGERED CONFIGURATION
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 7.24mm
Insulation Height 0.320 8.13mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Natural
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.095 2.41mm
Number of Contacts 100
Contact Finish - Post Tin-Lead
Mating Information MULTIPLE MATING PARTS AVAILABLE
ELV Compliant
Preloaded Yes
Stackable No
Dimensions
Height 8.12mm
Length 67.06mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Length - Tail 2.41mm
Stack Height (Mating) 10.92mm 17.78mm 18.75mm
Stack Height 18.7452mm
Compliance
RoHS Status Non-RoHS Compliant
