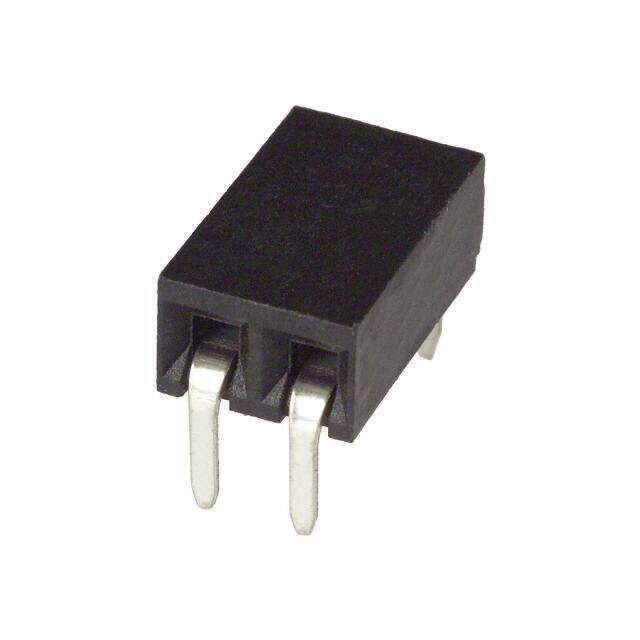

535676-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 2 POS 2.54mm Solder RA Thru-Hole Automotive Tube
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.485773
≥1 USD $0.485773
≥10 USD $0.404373
≥30 USD $0.364986
Inventory: 50
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Post 50.0μin 1.27μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 5.08mm
Technical
High Temperature Compatible Yes
PCB Contact Row Spacing 7.874 mm
ELV Non-Compliant
Insulation Resistance 5000000000Ohm
Contact Resistance 12mOhm
Rated Current (Signal) 2A
Lead Length 2.92mm
Housing Color Black
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Number Of PCB Rows 2
Contact Length - Post 0.115 2.92mm
Approval Agency CSA, UL
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.137 3.47mm
Depth 8.13mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 2
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Series AMPMODU Mod II
Published 2003
Packaging Tube
Operating Temperature -55°C~125°C
Physical
PCB Mounting Orientation Right Angle
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
