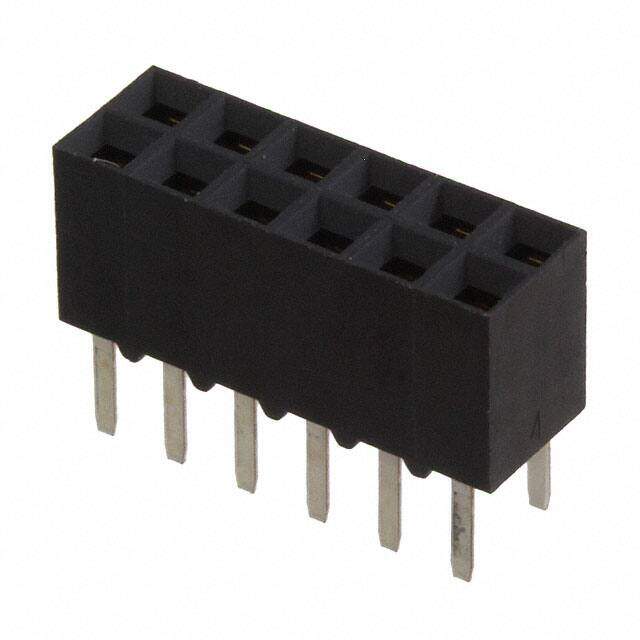

535598-7
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 12POS .100 DUAL T/H AU
PDF
/
Inventory: 4057
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -65°C~125°C
Packaging Tube
Published 2009
Series AMPMODU Mod IV
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Number of Rows 2
Additional Feature PCB STANDOFF
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
Contact Type Female Socket
Orientation Vertical
Insulation Height 0.265 6.73mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reliability COMMERCIAL
Approval Agency CSA
Body Length or Diameter 0.6 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Housing Color Black
Lead Length 3.175mm
Rated Current (Signal) 3A
Contact Resistance 12MOhm
Insulation Resistance 5GOhm
Mating Contact Pitch 0.1 inch
ELV Non-Compliant
Dielectric Withstanding Voltage 750VAC V
Durability 100 Cycles
Withdrawl Force-Min .417 N
Contact Current Rating 2A
Stackable Yes
High Temperature Compatible No
Dimensions
Height 5.03mm
Plating Thickness 3.81μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Length - Tail 3.18mm
PCB Thickness 1.57mm
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
Alternative Model
