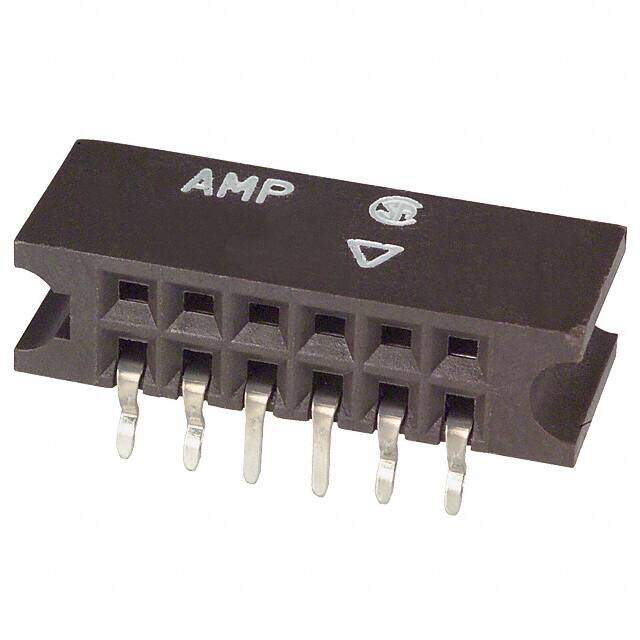

534204-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 12 MODU 2-PC CE RECP ASSEMBLY
PDF
/
Inventory: 7578
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Voltage - Rated AC 250V
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.115 2.92mm
Contact Finish - Post Tin-Lead
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Housing Color Black
Style Board to Board
Insulation Height 0.238 6.05mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 12
Connector Type Receptacle
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Feature Guide Pin Ears
Series AMPMODU Mod II
Published 2008
Packaging Tube
High Temperature Compatible Yes
Mating Alignment With
Circuit Application Signal
Contact Current Rating 3A
ELV Compliant
Insulation Resistance 1GOhm
Operating Supply Voltage 250V
Lead Length 2.92mm
Physical
PCB Mount Alignment Without
PCB Mounting Orientation Right Angle
Housing Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 20 Weeks
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
PCB Thickness 1.57mm
Length - Tail 2.8956mm
Contact Finish Thickness - Post 50.0μin 1.27μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Height 8.13mm
