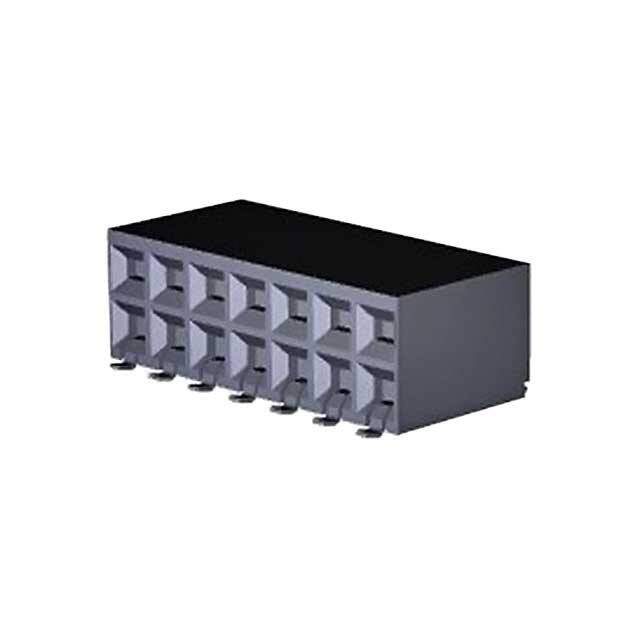

5147722-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 14 MODII HORZ DR SFMNT 30AU
PDF
/
Inventory: 7723
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polyester
PCB Mounting Orientation Right Angle
PCB Mount Retention Without
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2008
Series AMPMODU Mod II
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 14
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 14
Orientation Horizontal, Right Angle
Insulation Height 0.238 6.05mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
UL Flammability Code 94V-0
Lead Length 860μm
Operating Supply Voltage 333V
Contact Resistance 12MOhm
Insulation Resistance 5GOhm
ELV Compliant
Sealable No
Contact Current Rating 2A
High Temperature Compatible Yes
Dimensions
Height 6.0452mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
PCB Thickness 1.02mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
