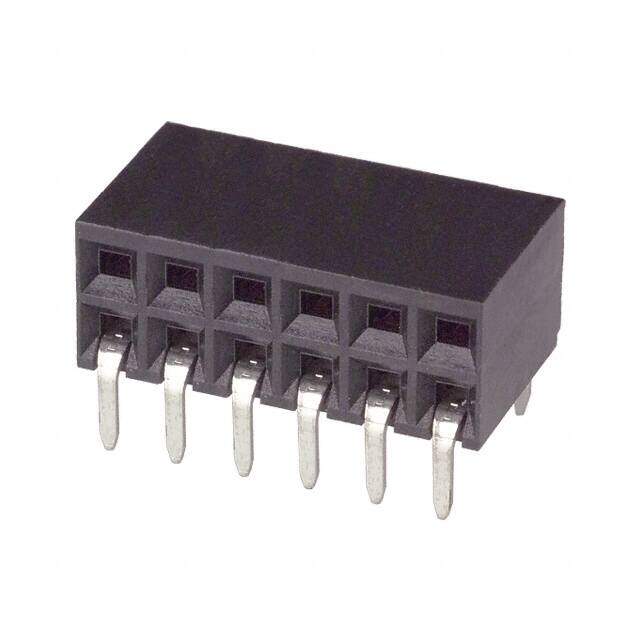

5146140-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Headers & Wire Housings 12 MODII HORZ DR CE 100CL
PDF
/
Inventory: 4794
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 2.4mm
Length - Tail 2.92mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Height 6.0452mm
Technical
High Temperature Compatible Yes
Contact Current Rating 2A
Sealable No
ELV Non-Compliant
Insulation Resistance 5GOhm
Contact Resistance 12MOhm
Operating Supply Voltage 333V
Lead Length 2.92mm
UL Flammability Code 94V-0
Contact Finish - Post Tin
Number of Contacts 112
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Insulation Height 0.238 6.05mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Female
Number of Rows 2
Number of Positions 12
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series AMPMODU Mod II
Published 2008
Packaging Box
Operating Temperature -55°C~125°C
Physical
PCB Mount Retention Without
PCB Mounting Orientation Right Angle
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 16 Weeks
Alternative Model
