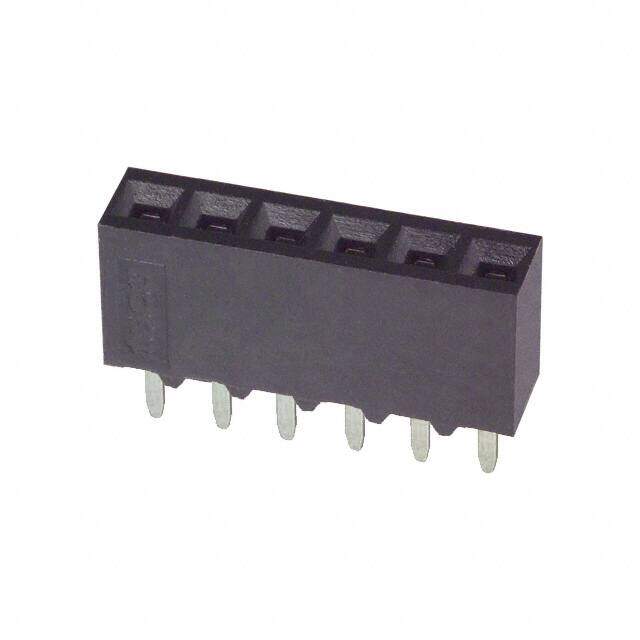

5-535541-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 6POS 0.1 GOLD PCB
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.2792
≥1 USD $2.2792
≥10 USD $2.020911
≥100 USD $1.835398
≥500 USD $1.660094
≥1000 USD $1.484806
≥3000 USD $1.309519
Inventory: 699
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 2.4mm
Length - Tail 3.18mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 50μm
Length 15.24mm
Height 3.56mm
Technical
Stackable Yes
Contact Current Rating 3A
Sealable No
Dielectric Withstanding Voltage 750VAC V
ELV Compliant
Insulation Resistance 5GOhm
Contact Resistance 12MOhm
Rated Current (Signal) 2A
Operating Supply Voltage 333V
Lead Length 3.175mm
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Lead Pitch 2.54mm
Number Of PCB Rows 1
Contact Length - Post 0.125 3.18mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.265 6.73mm
Depth 3.56mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature TOP ENTRY
Voltage - Rated 750V
Number of Rows 1
Number of Positions 6
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AMPMODU Mod IV
Published 2008
Packaging Tube
Operating Temperature -65°C~125°C
Physical
PCB Mount Retention Without
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
