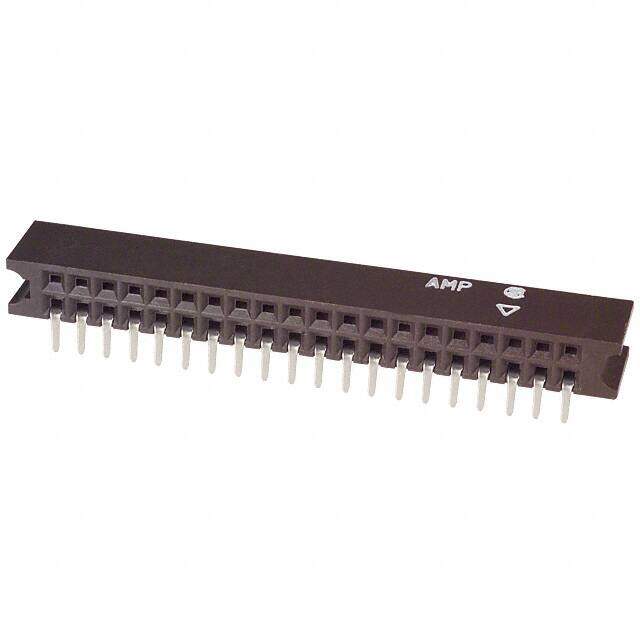

5-532955-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 40POS 0.1 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $6.97
Unit Price: USD $6.9696
≥1 USD $6.9696
≥10 USD $5.91125
≥100 USD $5.400006
≥500 USD $5.048498
≥1000 USD $4.50531
Inventory: 596
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Housing Material Thermoplastic
PCB Mounting Orientation Right Angle
PCB Mount Alignment Without
Technical
Packaging Tube
Published 2007
Series AMPMODU Mod II
Feature Guide Pin Ears
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 40
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Depth 8.13mm
Insulation Height 0.238 6.05mm
Style Board to Board
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Voltage - Rated AC 250V
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.115 2.92mm
Contact Finish - Post Tin
Contact Gender Female
UL Flammability Code 94V-0
Lead Length 2.92mm
Operating Supply Voltage 250V
Contact Resistance 12mOhm
Insulation Resistance 1GOhm
ELV Compliant
Max Voltage Rating (AC) 250V
Contact Current Rating 3A
Circuit Application Signal
Mating Alignment With
High Temperature Compatible Yes
Dimensions
Height 8.13mm
Length 57.35mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 50.0μin 1.27μm
Length - Tail 2.921mm
PCB Thickness 1.57mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
