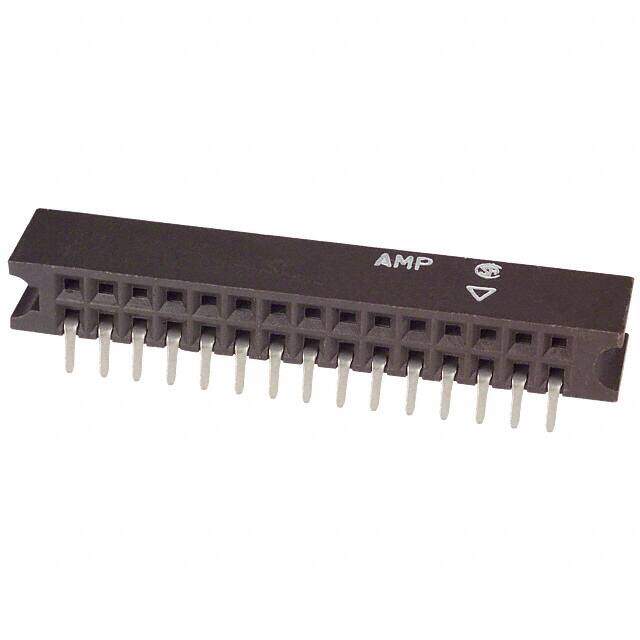

5-532955-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 30POS 0.1 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $8.1
Unit Price: USD $8.104611
≥1 USD $8.104611
≥10 USD $7.645866
≥100 USD $7.213077
≥500 USD $6.804788
≥1000 USD $6.419615
Inventory: 8729
Minimum: 1
-
+
Technical Details
Technical
Contact Current Rating 3A
Circuit Application Signal
Mating Alignment With
High Temperature Compatible Yes
PCB Contact Row Spacing 7.874 mm
Dielectric Withstanding Voltage 750VAC V
Polarization Key DUAL POLARIZED
Max Voltage Rating (AC) 250V
ELV Compliant
Mating Contact Pitch 0.1 inch
Insulation Resistance 1GOhm
Contact Resistance 12mOhm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Lead Length 2.92mm
UL Flammability Code 94V-0
Contact Gender Female
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.238 6.05mm
Depth 8.13mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 30
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Guide Pin Ears
Series AMPMODU Mod II
Published 2008
Packaging Tube
Dimensions
Height 8.13mm
Length 44.65mm
Width 8.13mm
Plating Thickness 15μin
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 50.0μin 1.27μm
Length - Tail 2.921mm
PCB Thickness 1.57mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
PCB Mount Alignment Without
PCB Mounting Orientation Right Angle
Housing Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 4 Weeks
Alternative Model
