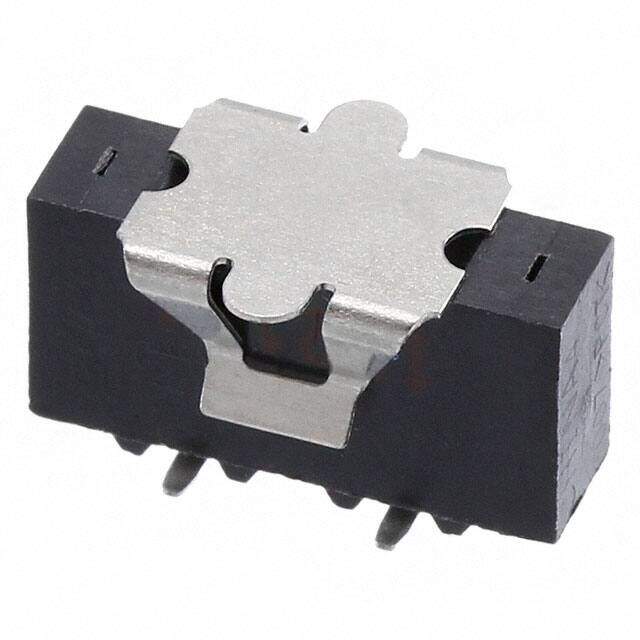

5-147730-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 3 POS 2.54mm Solder ST SMD T/R
PDF
/
Inventory: 8214
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -65°C~125°C
Packaging Tape & Reel (TR)
Published 2008
Series AMPMODU Mod IV
Feature Board Lock, Pick and Place
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 3
Number of Rows 1
Gender Receptacle
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Total Number of Contacts 3
Orientation Vertical
Terminal Pitch 2.54mm
Depth 3.56mm
Insulation Height 0.265 6.73mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Voltage - Rated AC 250V
Approval Agency CSA, UL
Contact Finish - Post Tin
UL Flammability Code 94V-0
Housing Color Black
Contact Resistance 12mOhm
ELV Compliant
Max Voltage Rating (AC) 250V
Stackable No
High Temperature Compatible Yes
Dimensions
Length 12.7mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
