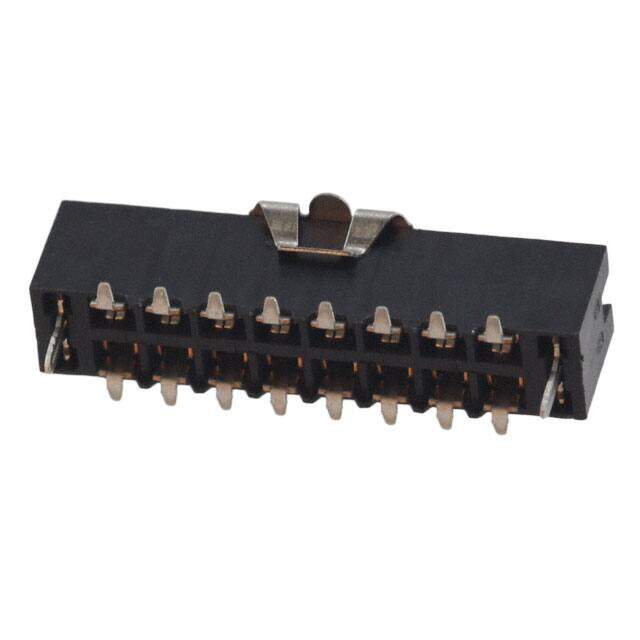

5-147102-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 16POS DUAL RECPT .100
PDF
/
Inventory: 3072
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyester, Glass Filled
Housing Material Polymer
Technical
Operating Temperature -65°C~125°C
Packaging Tube
Published 2003
Series AMPMODU Mod IV
Feature Board Lock, Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom or Top Entry
Number of Positions 16
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Total Number of Contacts 16
Orientation Vertical
Depth 5.03mm
Insulation Height 0.265 6.73mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Voltage - Rated AC 250V
Approval Agency CSA, UL
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
Housing Color Black
Contact Resistance 12mOhm
ELV Compliant
Max Voltage Rating (AC) 250V
Stackable No
High Temperature Compatible Yes
Dimensions
Length 25.4mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
