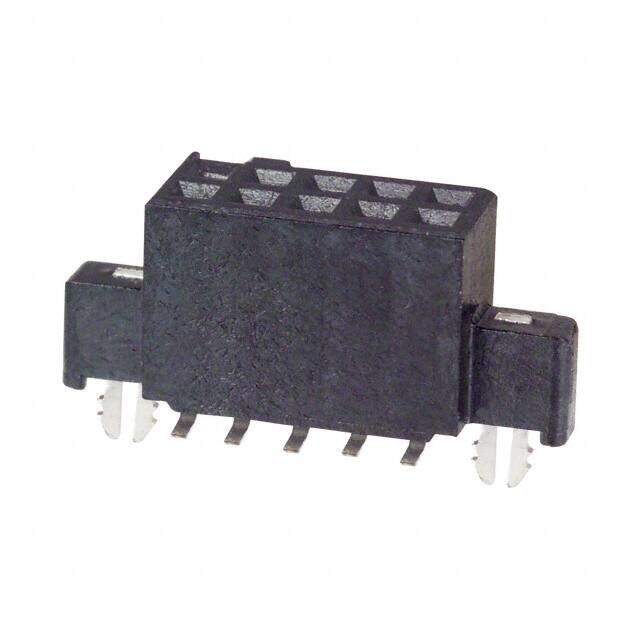

5-104652-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 10POS 0.05 GOLD SMD
PDF
/
Buying Options
Total Price: USD $3.62
Unit Price: USD $3.6168
≥1 USD $3.6168
≥10 USD $3.203922
≥100 USD $2.858926
≥500 USD $2.628886
≥1000 USD $2.349565
Inventory: 1166
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Stack Height (Mating) 6.35mm 8.13mm 9.91mm
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Width 3.05mm
Length 10.82mm
Height 4.7498mm
Technical
Mating Alignment With
Contact Current Rating 4A
Number of Poles 10
Dielectric Withstanding Voltage 300VDC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 30V
Mating Contact Pitch 0.05 inch
Insulation Resistance 5GOhm
Contact Resistance 16mOhm
Operating Supply Voltage 30V
Housing Color Black
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Lead Pitch 1.27mm
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 30V
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 4A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.187 4.75mm
Depth 3.05mm
Orientation Vertical
Total Number of Contacts 10
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Voltage - Rated 30V
Number of Rows 2
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
JESD-609 Code e3
Series AMPMODU 50/50 Grid
Published 2006
Packaging Tube
Operating Temperature -65°C~105°C
Physical
Underplate Material Nickel
Housing Material Thermoplastic
Material Metal
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount PCB, Surface Mount
Contact Material Copper Alloy
